y Add to group - Add a candidate to a group. Clicking this option will reveal the following dialog for the user
to enter a password for authentication from the Candidate Switch before being added to the SIM group.
Click OK to enter the password or Cancel to exit the window.

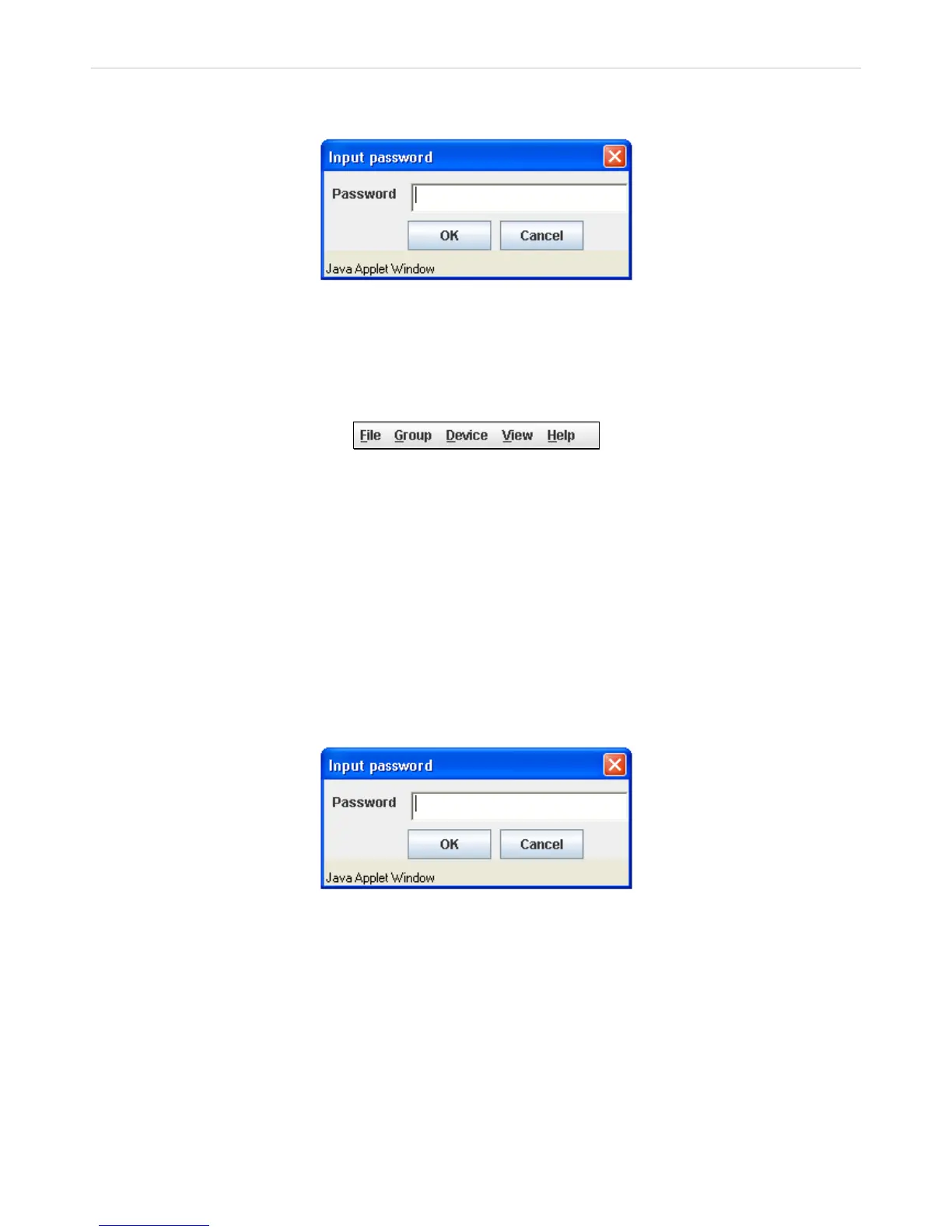

Figure 2 - 52. Input password window
y Property - To pop up a window to display the device information.
Menu Bar
The Single IP Management window contains a menu bar for device configurations, as seen below.
Figure 2 - 53. Menu Bar of the Topology View
The five menus on the menu bar are as follows.
File
y Print Setup - Will set the default printer properties.
y Print Topology - Will print the topology map.
y Preference - Will set display properties, such as polling interval, and the views to open at SIM startup.
Group
y Add to group - Add a candidate to a group. Clicking this option will reveal the following dialog for the user
to enter a password for authentication from the Candidate Switch before being added to the SIM group.
Click OK to enter the password or Cancel to exit the window.
Figure 2 - 54. Input password window
y Remove from Group - Remove an MS from the group.
Device
y Configure - Will open the web manager for the specific device.
View
y Refresh - Update the views with the latest status.
y Topology - Display the Topology view.
52
