xStack
®
DES-3200-10/18/28/28F Layer 2 Ethernet Managed Switch User Manual

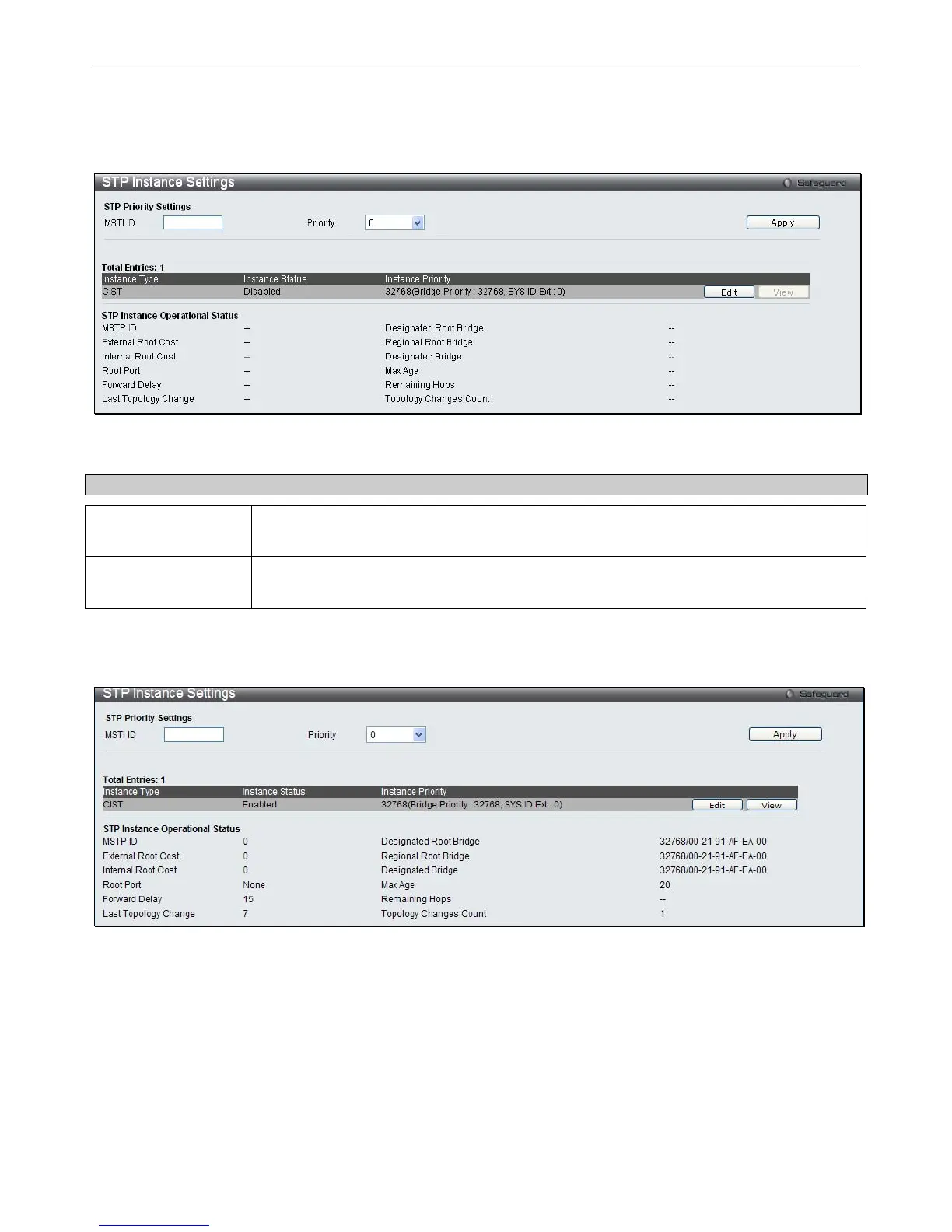

STP Instance Settings
The following window displays MSTIs currently set on the Switch.
To view the following table, click L2 Features > Spanning Tree > STP Instance Settings:
Figure 3 - 44. STP Instance Settings window
The following information can be set:
Parameter Description
MSTI ID
Displays the MSTI ID of the instance being modified. An entry of 0 in this field denotes the
CIST (default MSTI).
Priority
Enter the new priority in the Priority field. The user may set a priority value between 0 and
61440.
To modify an entry, click the Edit button.
To see the STP Instance Operational Status of a previously configured setting, click View. The following window will
be displayed:
Figure 3 - 45. STP Instance Settings - View window
96
