xStack
®
DES-3200-10/18/28/28F Layer 2 Ethernet Managed Switch User Manual

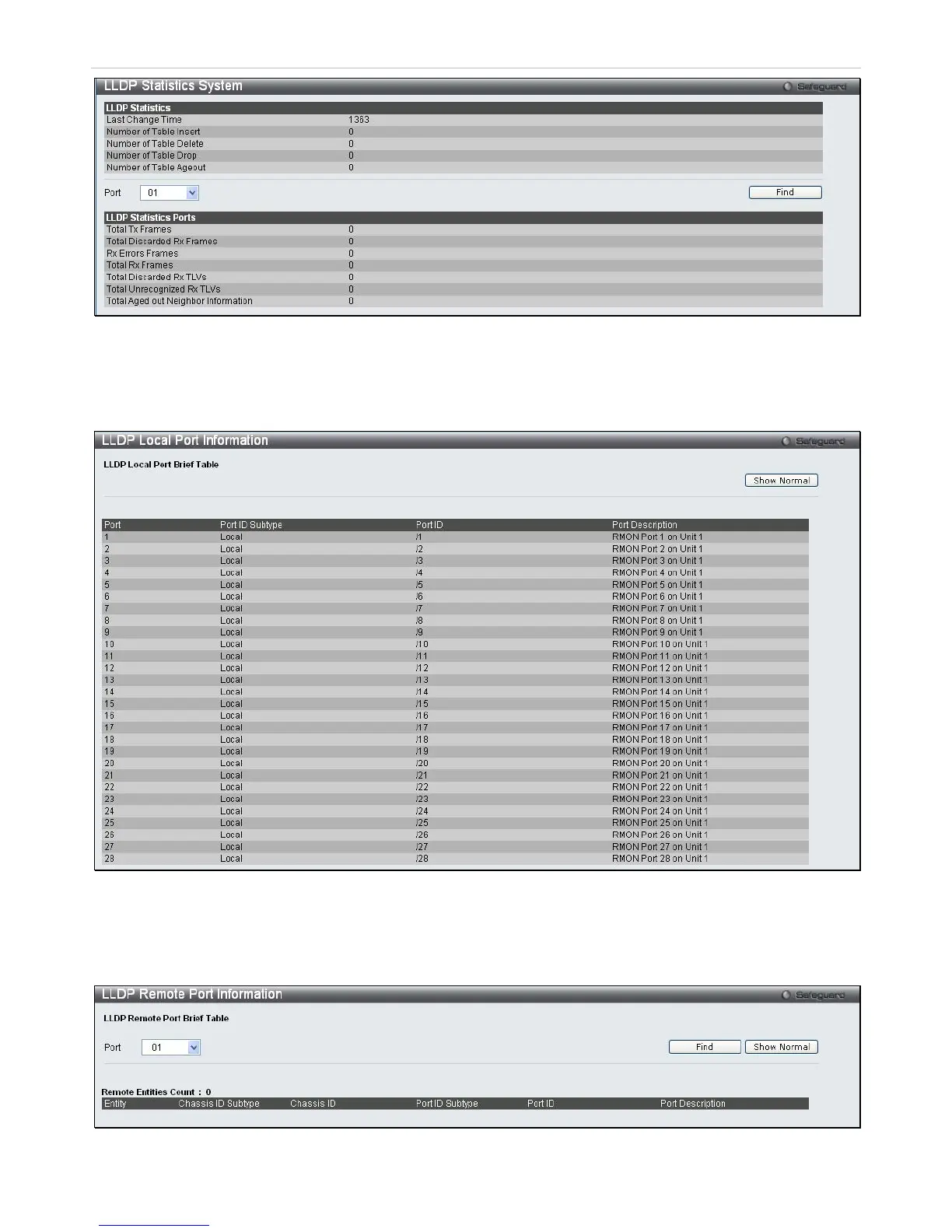

Figure 7 - 30. LLDP Statistics System window
LLDP Local Port Information
To view this window, click Monitoring > LLDP > LLDP Local Port Information:
Figure 7 - 31. LLDP Local Port Information window
LLDP Remote Port Information
To view this window, click Monitoring > LLDP > LLDP Remote Port Information:
Figure 7 - 32. LLDP Remote Port Information window
210
