This window displays the Authenticator State for individual ports on a selected device. A polling interval between 1s
and 60s seconds can be set using the drop-down menu at the top of the window and clicking OK.
The information on this window is described as follows:
Parameter Description
MAC Address
The MAC Address of the device of the corresponding index number.
Auth PAE State
The Authenticator PAE State value can be: Initialize, Disconnected, Connecting, Authenticating,
Authenticated, Aborting, Held, Force_Auth, Force_Unauth, or N/A. N/A (Not Available) indicates
that the port's authenticator capability is disabled.
Backend State
The Backend Authentication State can be Request, Response, Success, Fail, Timeout, Idle,
Initialize, or N/A. N/A (Not Available) indicates that the port's authenticator capability is disabled.
Port Status
Controlled Port Status can be Authorized, Unauthorized, or N/A.
Authenticator Statistics
This window contains the statistics objects for the Authenticator PAE associated with each port. An entry appears in
this table for each port that supports the Authenticator function.
To view the Authenticator Statistics, click Monitoring > Port Access Control > Authenticator Statistics:

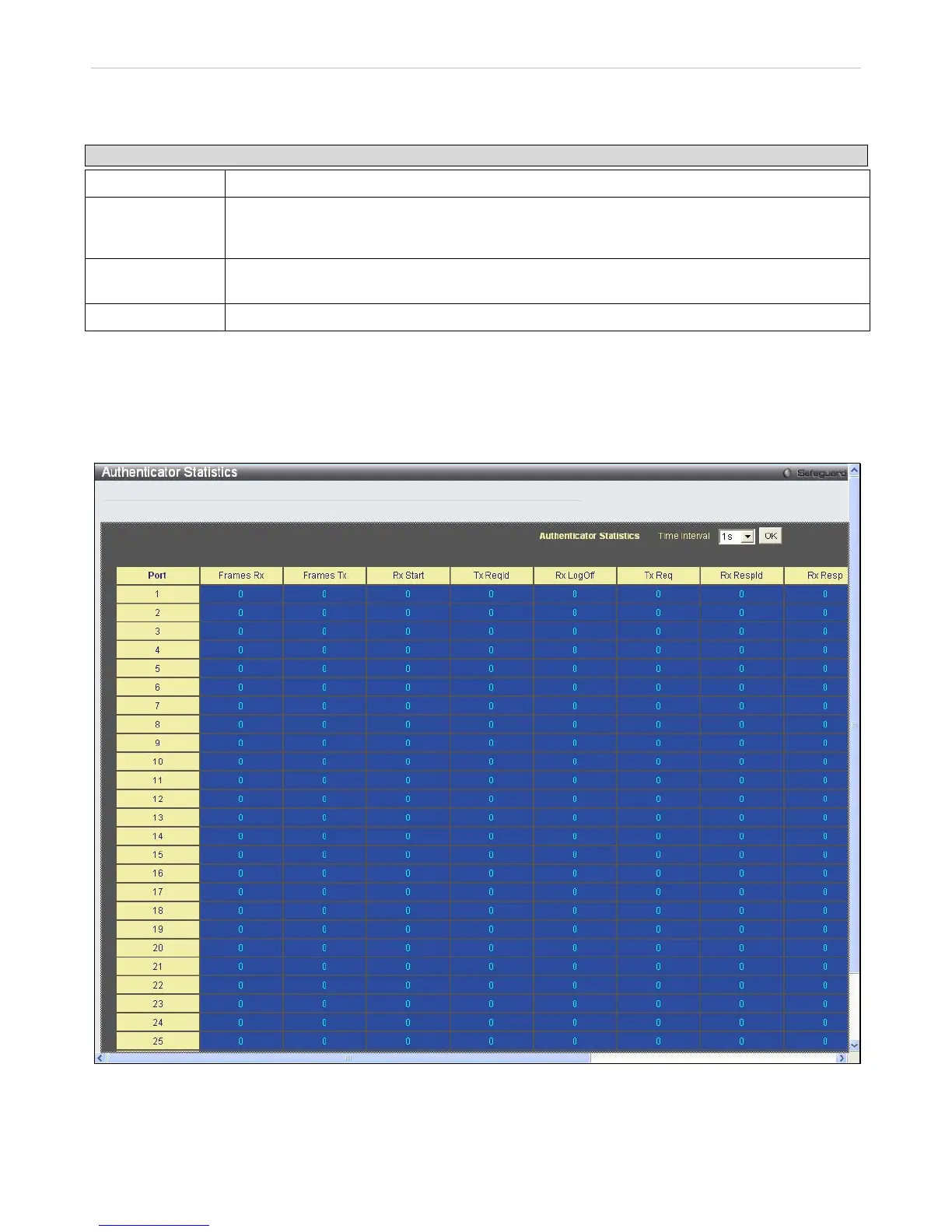

Figure 7 - 20. Authenticator Statistics window
The user may also select the desired time interval to update the statistics, between 1s and 60s, where “s” stands for
seconds. The default value is one second.
