xStack
®
DES-3200-10/18/28/28F Layer 2 Ethernet Managed Switch User Manual

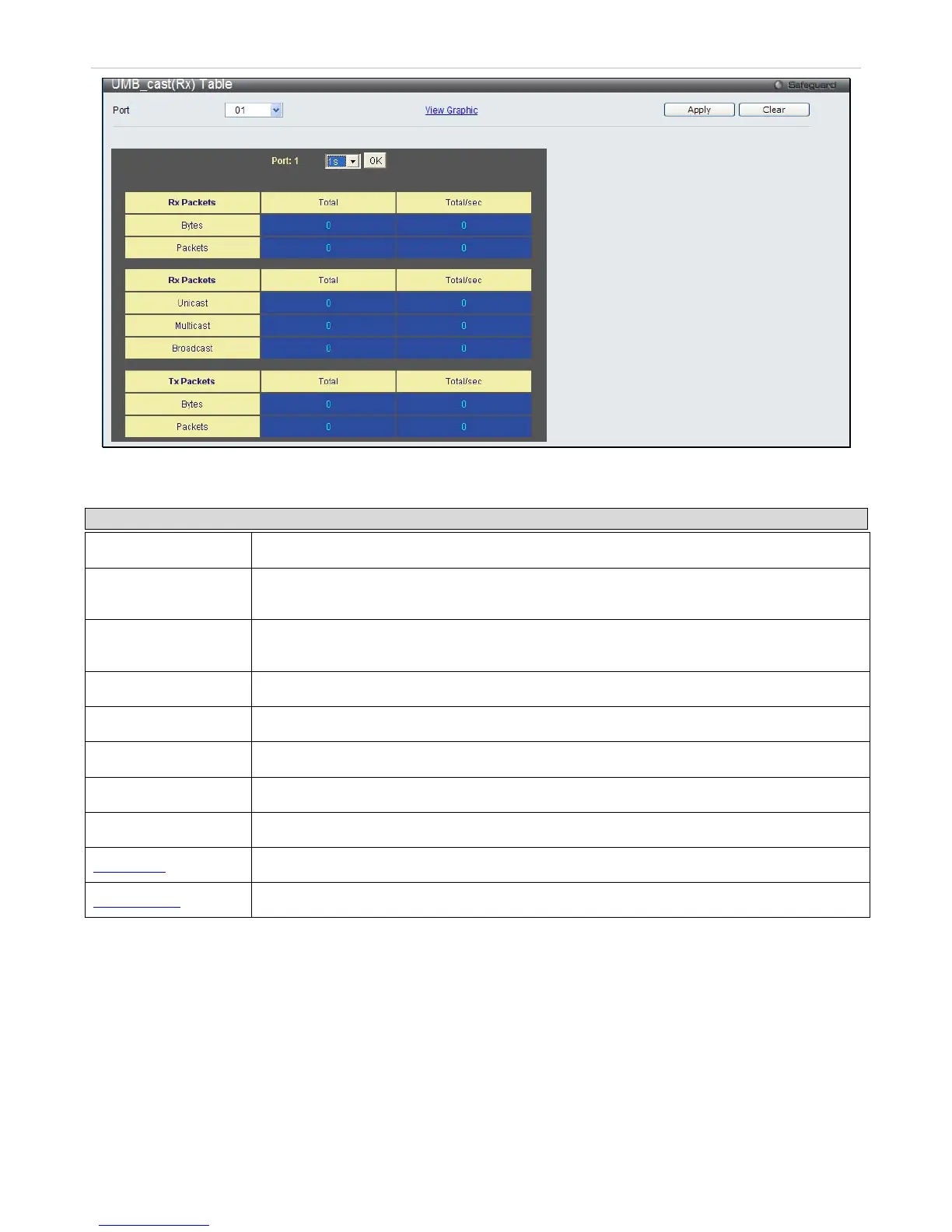

Figure 7 - 10. UMB_cast (Rx) Table window (for Unicast, Multicast, and Broadcast Packets)
The following fields may be set or viewed:
Parameter Description
Port
Use the drop-down menu to choose the port that will display statistics.
Time Interval
Select the desired setting between 1s and 60s, where "s" stands for seconds. The default
value is one second.
Record Number
Select number of times the Switch will be polled between 20 and 200. The default value is
200.
Unicast
Counts the total number of good packets that were received by a unicast address.
Multicast
Counts the total number of good packets that were received by a multicast address.
Broadcast
Counts the total number of good packets that were received by a broadcast address.
Show/Hide
Check whether or not to display Multicast, Broadcast, and Unicast Packets.
Clear
Clicking this button clears all statistics counters on this window.
View Table Clicking this button instructs the Switch to display a table rather than a line graph.
View Graphic Clicking this button instructs the Switch to display a line graph rather than a table.
Transmitted (Tx)
These windows display the Transmittd (Tx) packets on the Switch.To select a port to view these statistics for, select
the port by using the Port pull-down menu. The user may also use the real-time graphic of the Switch at the top of the
Web page by simply clicking on a port.
To view the following graph of packets transmitted from the Switch, click Monitoring > Packets > Transmitted (Tx):
191
