DES-3200-10/18/28/28F Layer 2 Ethernet Managed Switch User Manual
Section 6
ACL
ACL Configuration Wizard
Access Profile List
CPU Access Profile List
ACL Finder
ACL Flow Meter
Access profiles allow the user to establish criteria to determine whether or not the Switch will forward packets based
on the information contained in each packet's header. These criteria can be specified on a basis of Packet Content,
MAC address, or IP address.
ACL Configuration Wizard
This window will aid with the creation of access profiles and ACL Rules. The ACL Wizard will create the access rule
and profile automatically.
To view this window click, ACL > ACL Configuration Wizard:

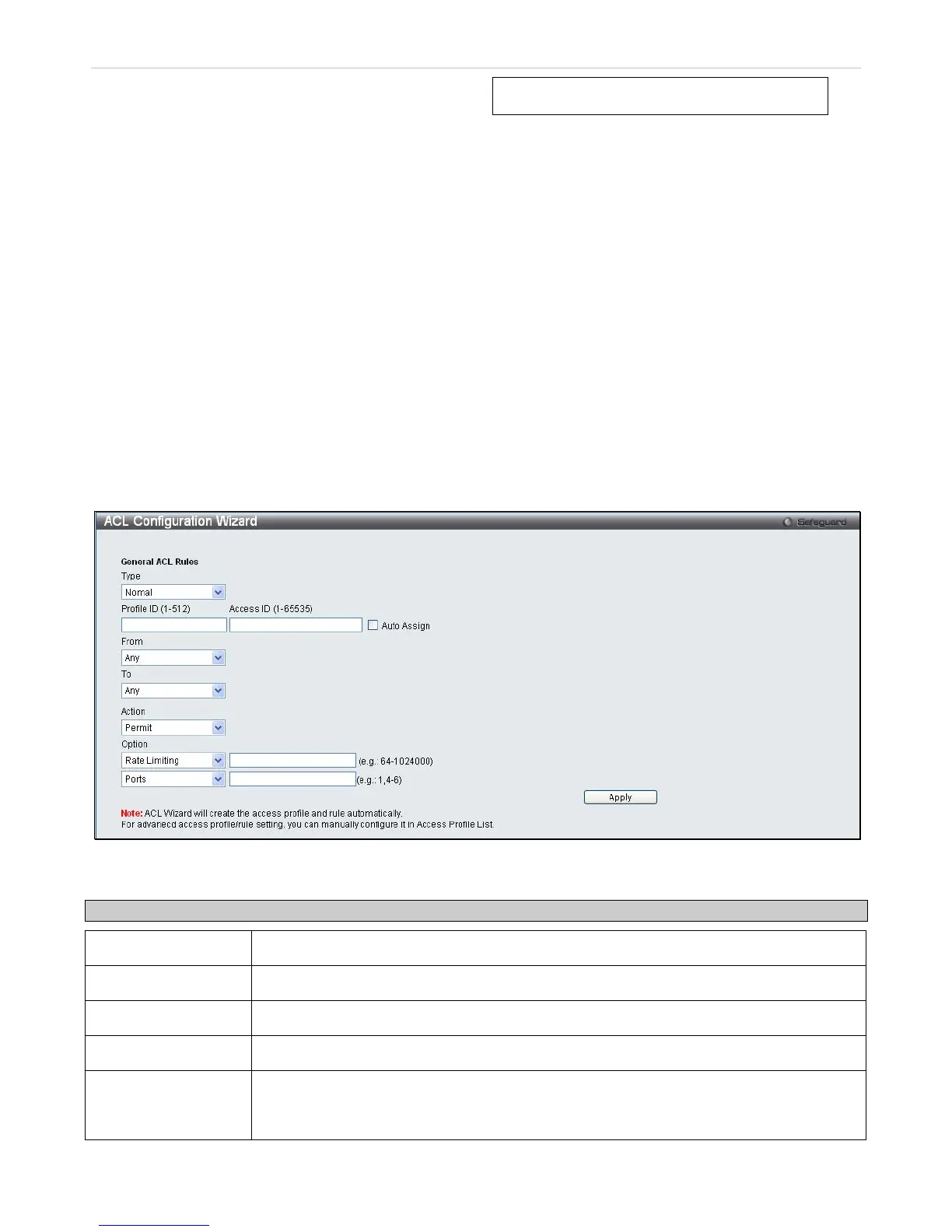

Figure 6 - 1. ACL Configuration Wizard window
The following parameters can be configured:
Parameter Description
Type
Select the type of ACL you wish to create, either Normal or CPU.
Profile ID (1-512)
Enter a unique identifier number for this profile set. This value can be set from 1 to 512.
Access ID (1-65535)
Type in a unique identifier number for this access. This value can be set from 1 to 65535.
From
Use the drop-down menu to select from MAC Address, IPv4 Address, IPv6, or Any.
To
Use the drop-down menu to select from MAC Address, IPv4 Address, or Any. When IPv6 is
selected the user can only enter the IPv6 source address or the IPv6 destination address at
any one time.
150
To Next Page
