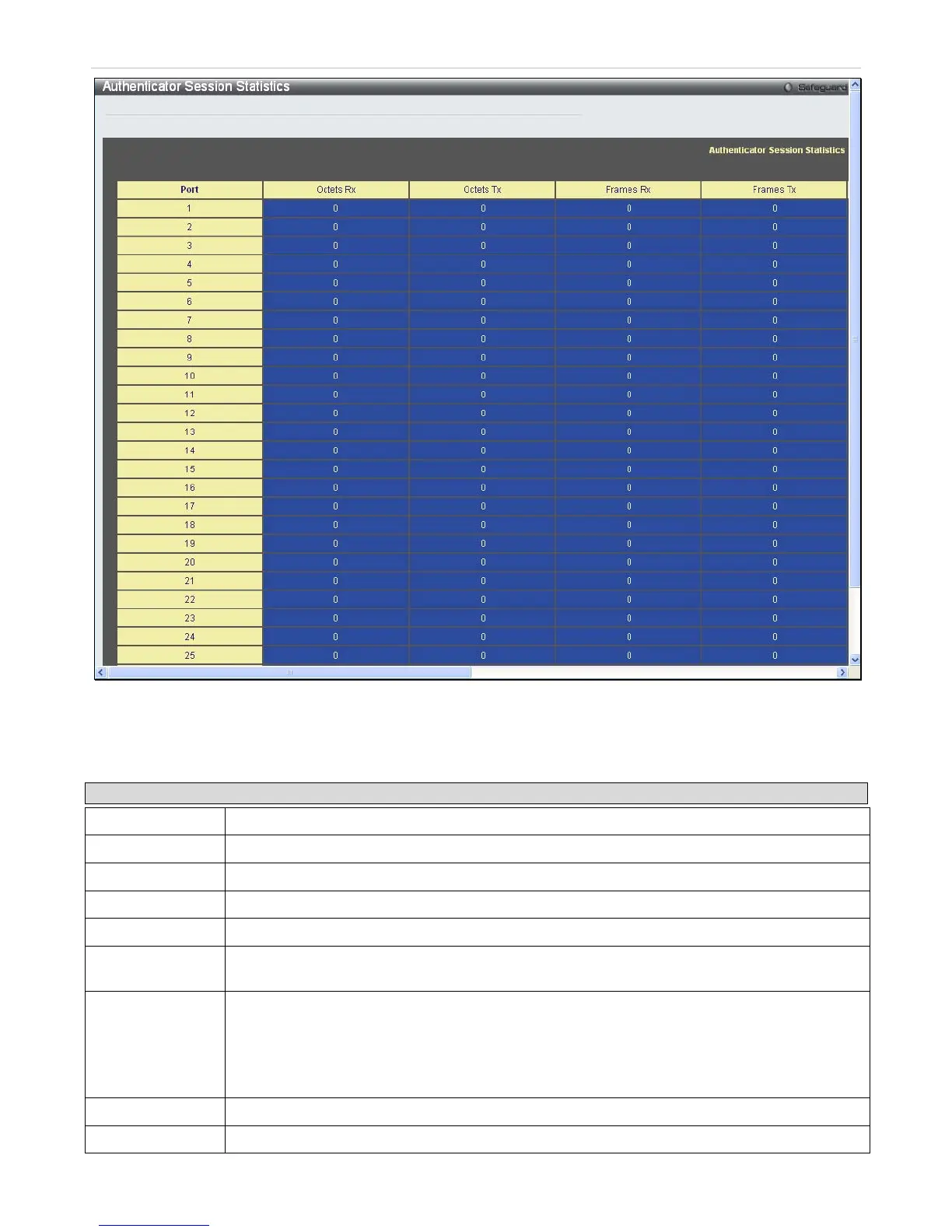

Figure 7 - 21. Authenticator Session Statistics window
The user may select the desired time interval to update the statistics, between 1s and 60s, where “s” stands for
seconds. The default value is one second.
The following fields can be viewed:
Parameter Description
Port
The identification number assigned to the Port by the System in which the Port resides.
Octets Rx
The number of octets received in user data frames on this port during the session.
Octets Tx
The number of octets transmitted in user data frames on this port during the session.
Frames Rx
The number of user data frames received on this port during the session.
Frames Tx
The number of user data frames transmitted on this port during the session.
ID
A unique identifier for the session, in the form of a printable ASCII string of at least three
characters.
Authentic Method
The authentication method used to establish the session. Valid Authentic Methods include:
(1) Remote Authentic Server - The Authentication Server is external to the Authenticator’s
System.
(2) Local Authentic Server - The Authentication Server is located within the Authenticator’s
System.
Time
The duration of the session in seconds.
Terminate Cause
The reason for the session termination. There are eight possible reasons for termination.
