• value (48-63) – Enter a value in hex form to mask the packet from byte 48 to byte 63.
• value (64-79) – Enter a value in hex form to mask the packet from byte 64 to byte 79.
Click Apply to implement changes made.
To view the settings of a previously correctly created profile, click
in the CPU Interface Filtering Table window to view the
following window:

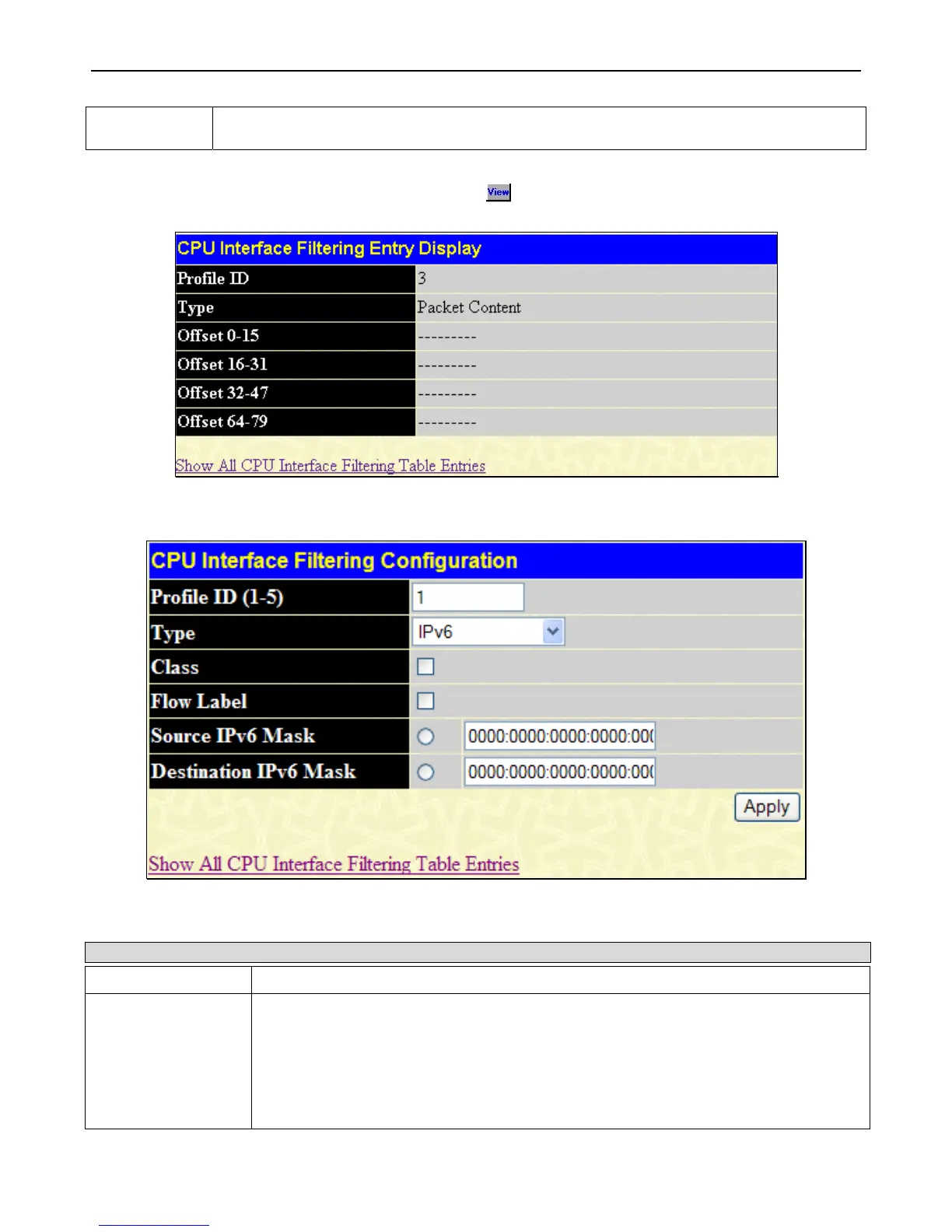

Figure 5 - 33 CPU Interface Filtering Display window (Packet Content)
The page shown below is the IPv6 configuration window.
Figure 5 - 34 CPU Interface Filtering Configuration window (IPv6)
The following parameters can be set, for IP:
Parameter Description
Profile ID (1-5)
Type in a unique identifier number for this profile set. This value can be set from 1 to 5.
Type
Select profile based on Ethernet (MAC Address), IP address, IPv6 address or packet content
mask. This will change the menu according to the requirements for the type of profile.
Select Ethernet to instruct the Switch to examine the layer 2 part of each packet header.
Select IP to instruct the Switch to examine the IP address in each frame's header.
Select Packet Content Mask to specify a mask to hide the content of the packet header.
Select IPv6 to instruct the Switch to examine the IPv6 address in each frame’s header.
