Checking this field will instruct the Switch to examine the class field of the IPv6 header. This
class field is a part of the packet header that is similar to the Type of Service (ToS) or
Precedence bits field in IPv4.
Flow Label
Checking this field will instruct the Switch to examine the flow label field of the IPv6 header.
This flow label field is used by a source to label sequences of packets such as non-default
quality of service or real time service packets.
Source IPv6 Mask
The user may specify an IP address mask for the source IPv6 address by checking the
corresponding box and entering the IP address mask.
Destination IPv6
Mask
The user may specify an IP address mask for the destination IPv6 address by checking the
corresponding box and entering the IP address mask.
Click Apply to implement changes made.
To view the settings for a created profile, click its corresponding
button in the Access Profile Table window, revealing the
following window.

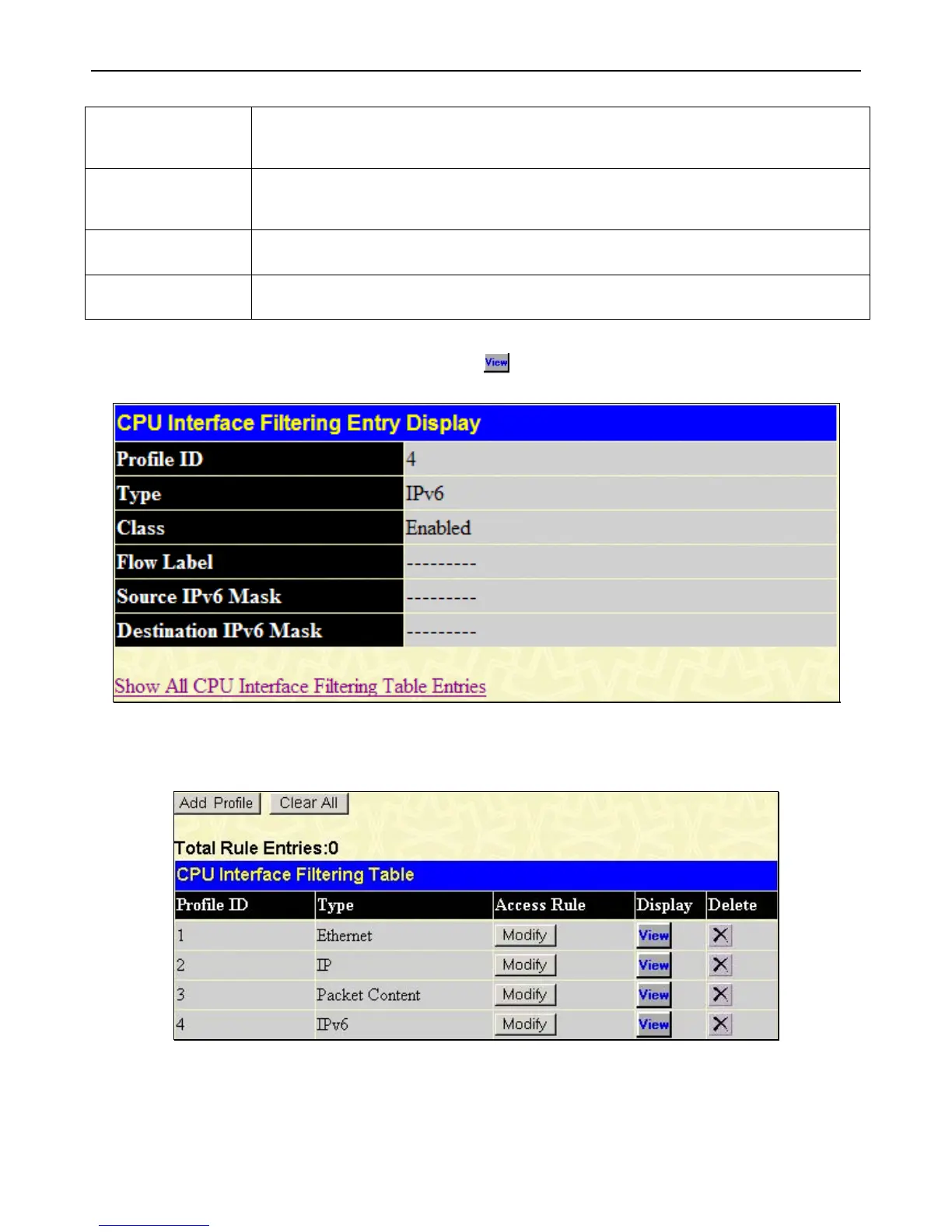

Figure 5 - 35 CPU Interface Filtering Display window (IPv6)
To establish the rule for a previously created CPU Access Profile:
Figure 5 - 36 CPU Interface Filtering Table window
In this window, the user may add a rule to a previously created CPU access profile by clicking the corresponding Modify button
of the entry to configure, Ethernet, IP, IPv6 or Packet Content. Each entry will open a new and unique window, as shown in the
examples below.
