xStack
®
DGS-3426G Layer 2 Gigabit Ethernet Managed Switch
212

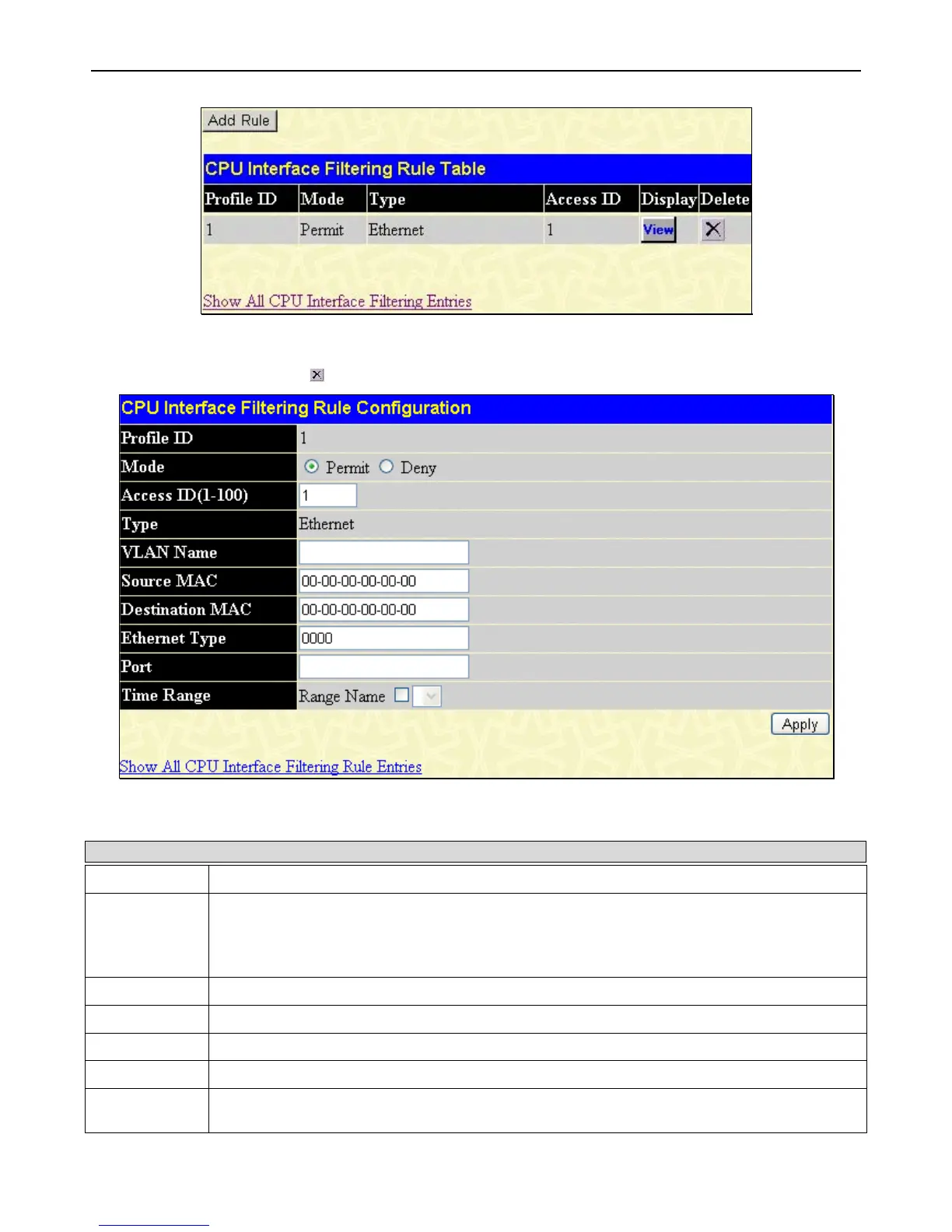

Figure 5 - 37 CPU Interface Filtering Table – (Ethernet)
To create a new rule set for an access profile click the Add Rule button. A new window is displayed. To remove a previously
created rule, click the corresponding
button. The following window is used for the Ethernet Rule configuration.
Figure 5 - 38 CPU Interface Filtering Rule Configuration window (Ethernet)
To set the CPU Interface Filtering Rule for Ethernet, adjust the following parameters and click Apply.
Parameter Description
Profile ID
This is the identifier number for this profile set.
Mode
Select Permit to specify that the packets that match the access profile are forwarded by the Switch,
according to any additional rule added (see below).
Select Deny to specify that packets that match the access profile are not forwarded by the Switch
and will be filtered.
Access ID
Type in a unique identifier number for this access and priority. This value can be set from 1 to 100.
Type
Specifies the type of profile that is being created.
VLAN Name
Allows the entry of a name for a previously configured VLAN.
Source MAC
Source MAC Address – Enter a MAC Address for the source MAC address.
Destination
MAC
Destination MAC Address – Enter a MAC Address mask for the destination MAC address.
