(1) Engine Room (A) Press
(2) Fixing Lever (B) Open up
2. Tilt the engine compartment
co v e r toward outs i d e w hile
pushing the fixing lever. For
your safety, the cover will stop
at 40°.
OPENING THE ENGINE
ROOM
1. Release the holding clip on the
seat frame.
OPENING & CLOSING OF
EACH EQUIPMENT

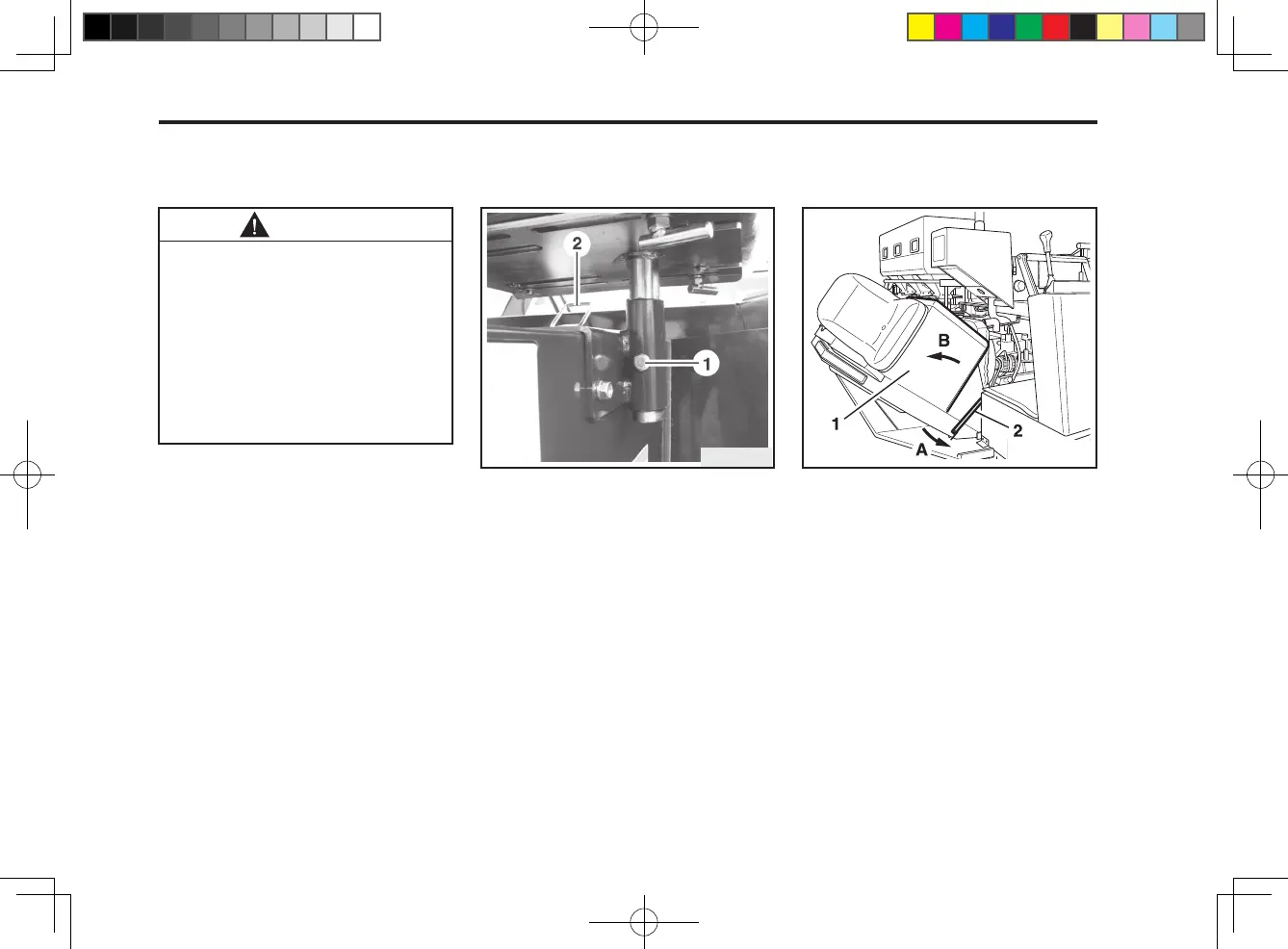

(1) Driver’s Seat (2) Holding Clip
417O802A
417O801A
1. Convenient maintenance is
possible by easy attachment
and detachment of the reaping
unit and complete opening of
the engine cover, threshing
and cutter compartments.
2. Before access to any part,
shut off the engine.
CAUTION
