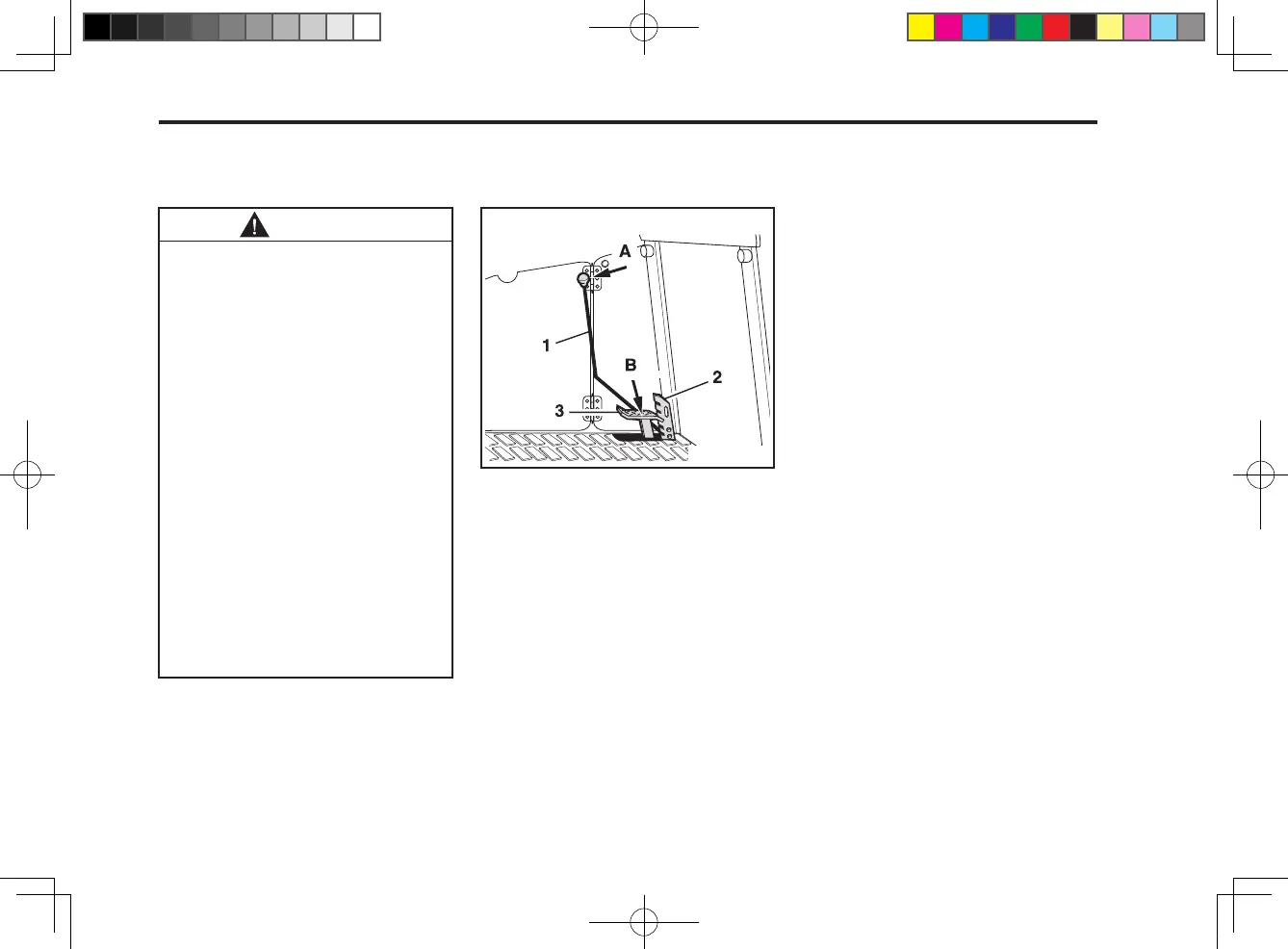

(1) Parking Brake Lever
(2) Arrester
(3) Parking Brake Pedal
(A) To lock (B) Press down
417O611A
Stop the combine on a flat
and safe place. Then lower
the reaping unit, stop the
engine, and apply the park-
ing brake.
Never use the parking brake
pedal while driving or load-
ing/unloading the combine
onto/from a transporting ve-
hicle. If you do so, the com-
bine may change its moving
direction unexpectedly. If
you need to stop, move the
main shift lever to STOP.
Wh e n p ark i ng on a hil l ,
please use chocks to pre-
vent the combine from mov-
ing down.
•
•
•
CAUTION
HOW TO STOP AND PARK
HOW TO PARK
OPERATION
1. S e t t h e ma in s h i f t le ve r o n
STOP.
2. Set the auxiliary shift lever on
NEUTRAL.
3. Lock the brake pedal.
4. Stop the engine and remove the
key.
HOW TO USE THE PARKING
BRAKE
To lock
Fi r m l y depress th e parking
brake down and lock the brake
pedal with the parking brake le-
ver.
To release
Firmly depress the brake pedal
again. Then the pedal will be re-
leased.
