CLOSING THE STRAW CUT-
TING UNIT
1. Perform the opening steps in
the reverse order.
2. Ensure that the Handle 1 is se-
curely latched.
3. Pay close attention to properly
install the driver belt.
ONE-TOUCH ATTACHMENT/DE-
TACHMENT OF THE COVERS
HOLDING HANDLE
1. To detach the covers, pull the
holding handle out.
2. Place the bottom holes of the
covers through the supporting
rods on the combine to attach
the covers. After attaching the
covers, turn the holding lever to
lock the covers.
417O806B

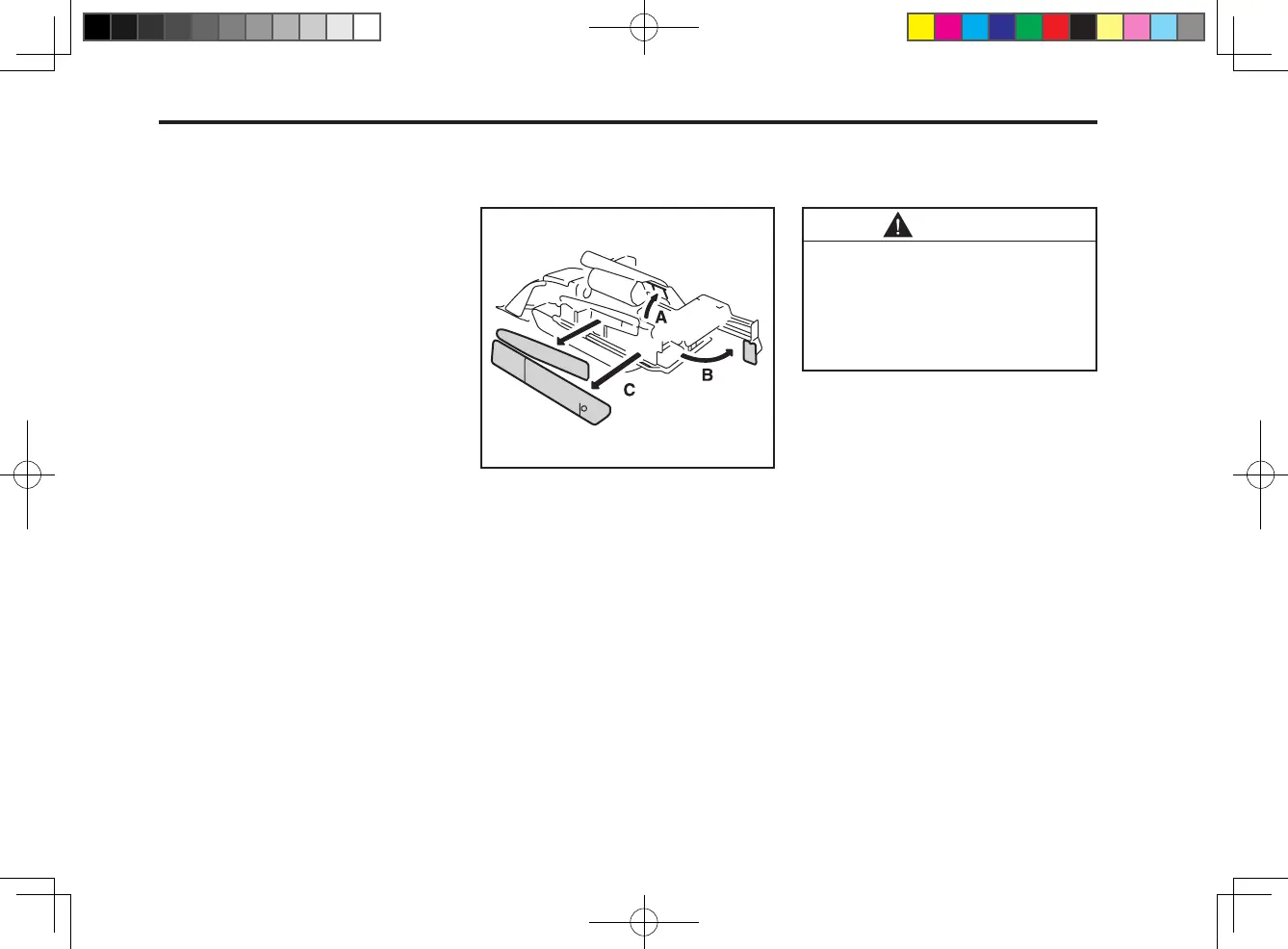

(A) Complete opening of the threshing chamber
(B) Opening of the cutting unit.
(C) One-touch attaching or detaching the covers
A cover may unexpectedly
fall down during attaching
or d e t ac hi ng a nd c au se
injuries. Be alert for your
safety.
•
CAUTION
