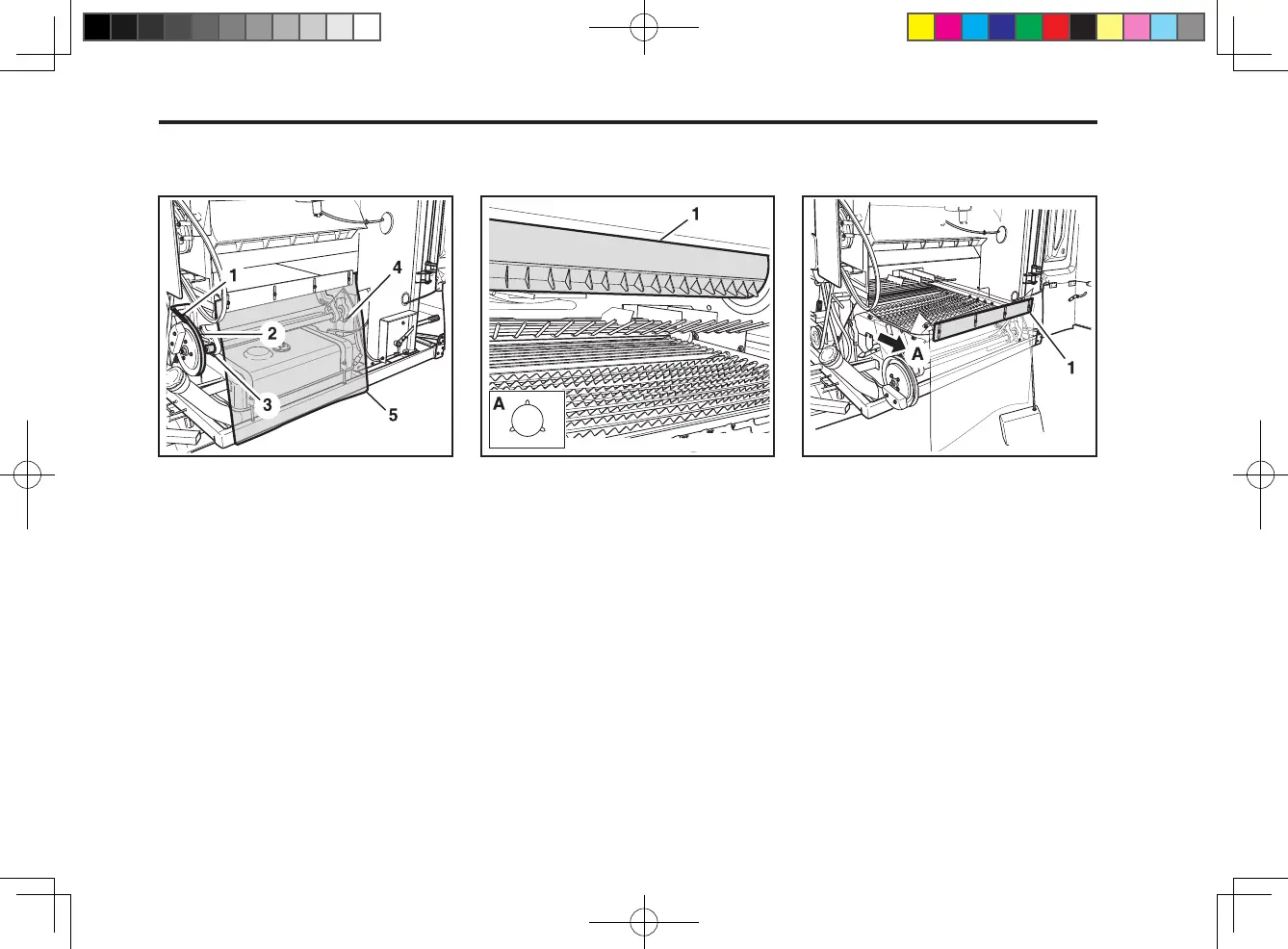

SIEVE CASE
(1) Tension Lever
(2) Oscillator Belt
(3) Tightening Bolt
(4) Fixing Bolt
(5) Oscillating Shaft Seal
REMOVING THE SIEVE CASE
1. Release the tension lever and
remove the oscillator belt.
2. Loosen the (two) bolts of the vi-
brating binder shaft.
417O810A 417O811A
3. Rotate the diffuser (suction de-
vice) to adjust the direction of
saw-tooth according to the dia-
gram.
(1) Separator
(A) Directions of Teeth
4. Pull the sieve case out.
INSTALLING THE SIEVE CASE
1. Rotate the se par ator to se t
up the direction of its teeth as
shownintheabovegure.
2. Insert the sieve case.
(1) Sieve Case (A) Pull out
