Top cone race
Top thread nut
Top cone race
Steel ball
Steel ball
Bottom cone race
Dust seal
Washer
Steering stem
Steel ball
Front Wheel/Front Fork/Steering

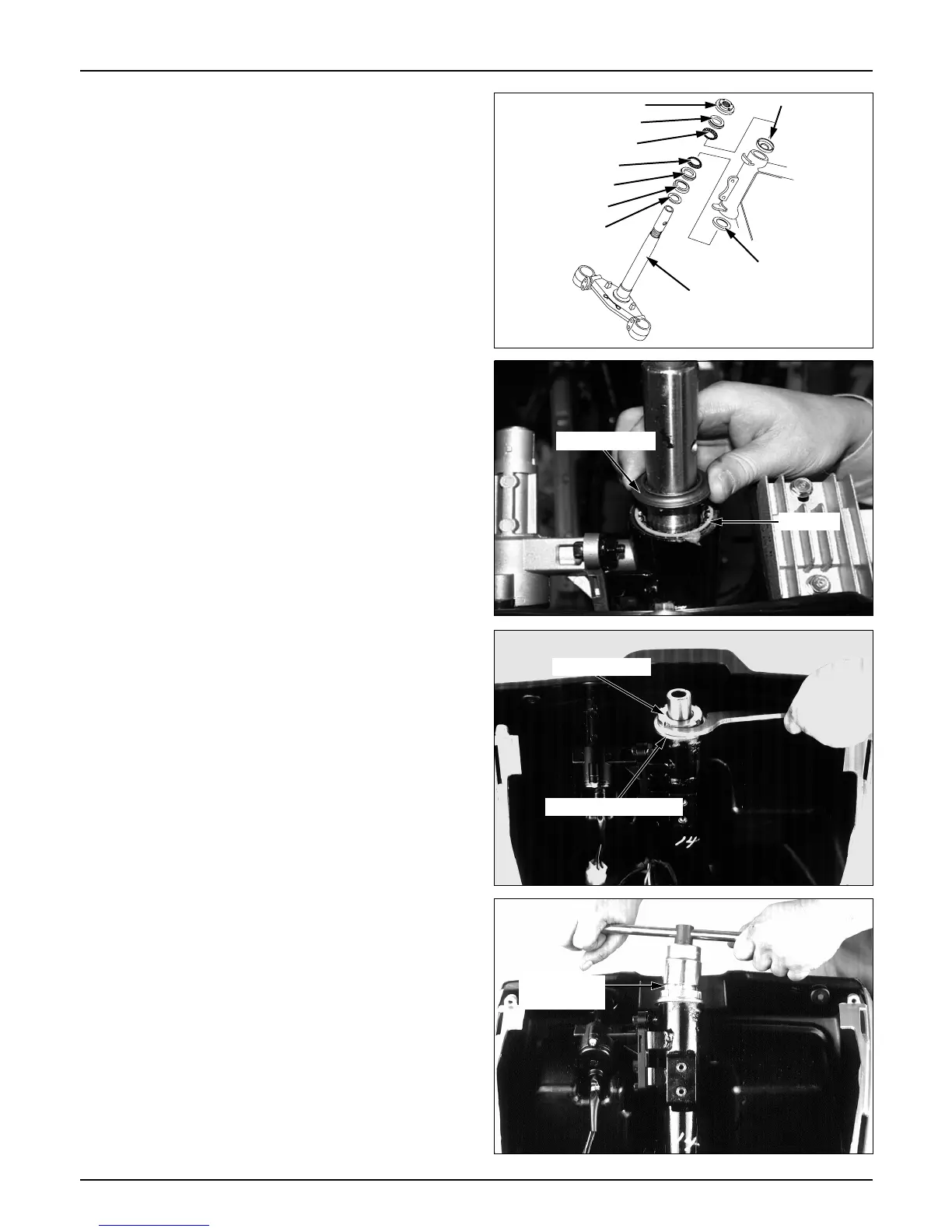

● Insert the dust seal washer and the dust seal into
the steering stem.
● Using a steering stem driver, insert the steering
botton cone race into the steering stem.
● Insert the ball race after applying grease thereto.
● Install the top cone race and the top thread nut
over the steering head.
● Tighten the top thread nut completely, and loosen
by 1/8 turn.
Torque value: 0.2-0.3kg-m (2-3N.m, 2ft-lb)
● Check the top and bottom free play, and check for
smooth left and right movement.
● Temporarily install the R/L front forks first, and
tighten the steering stem lock nut.
Torque value: 7.0kg-m (70N.m, 50ft-lb)
Tools: Lock nut wrench
Extension bar
12-17
Steering
stem lock nut
Top thread nut puller
Top thread nut
Top ball race
Bottom ball race
