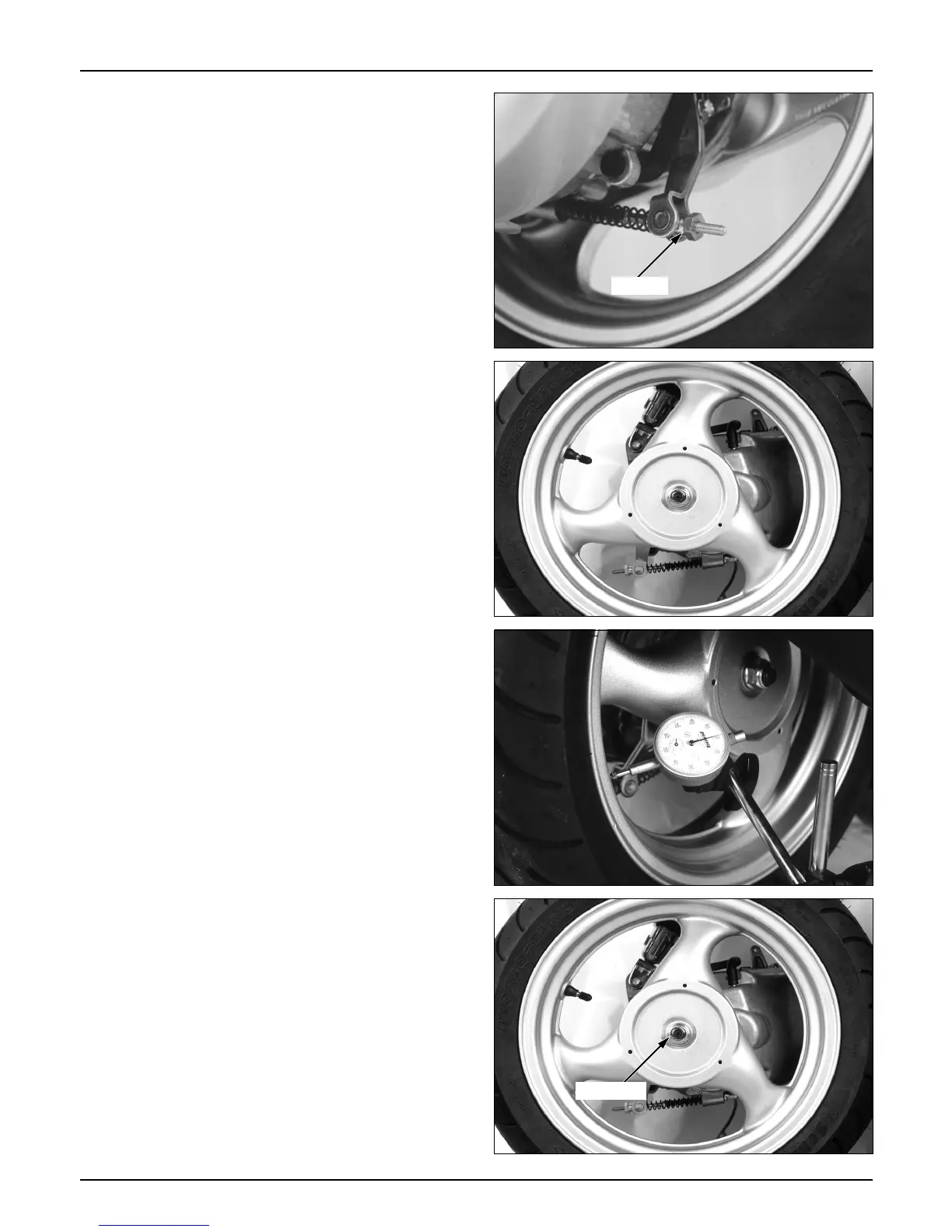

Rear Wheel/Brake/Suspension
Rear Wheel
Removal
● Support the motorcycle on the main stand.
● Loosen the rear brake adjuster, and remove the
brake cable.
● Loosen the brake arm setting bolts, and remove
the spring.
● Remove the muffler. ( 4-9)
● Loosen the rear wheel axle nut.
● Remove the lock washer.
● Remove the rear wheel.
Inspection
● Turn the wheel, and check the rim for wobbles.
Service limit:Radical 2.0mm (0.08in)
Axial 2.0mm (0.08in)
Assembly
● Insert the rear wheel over the drive shaft.
13-3
Adjuster
Drive shaft
