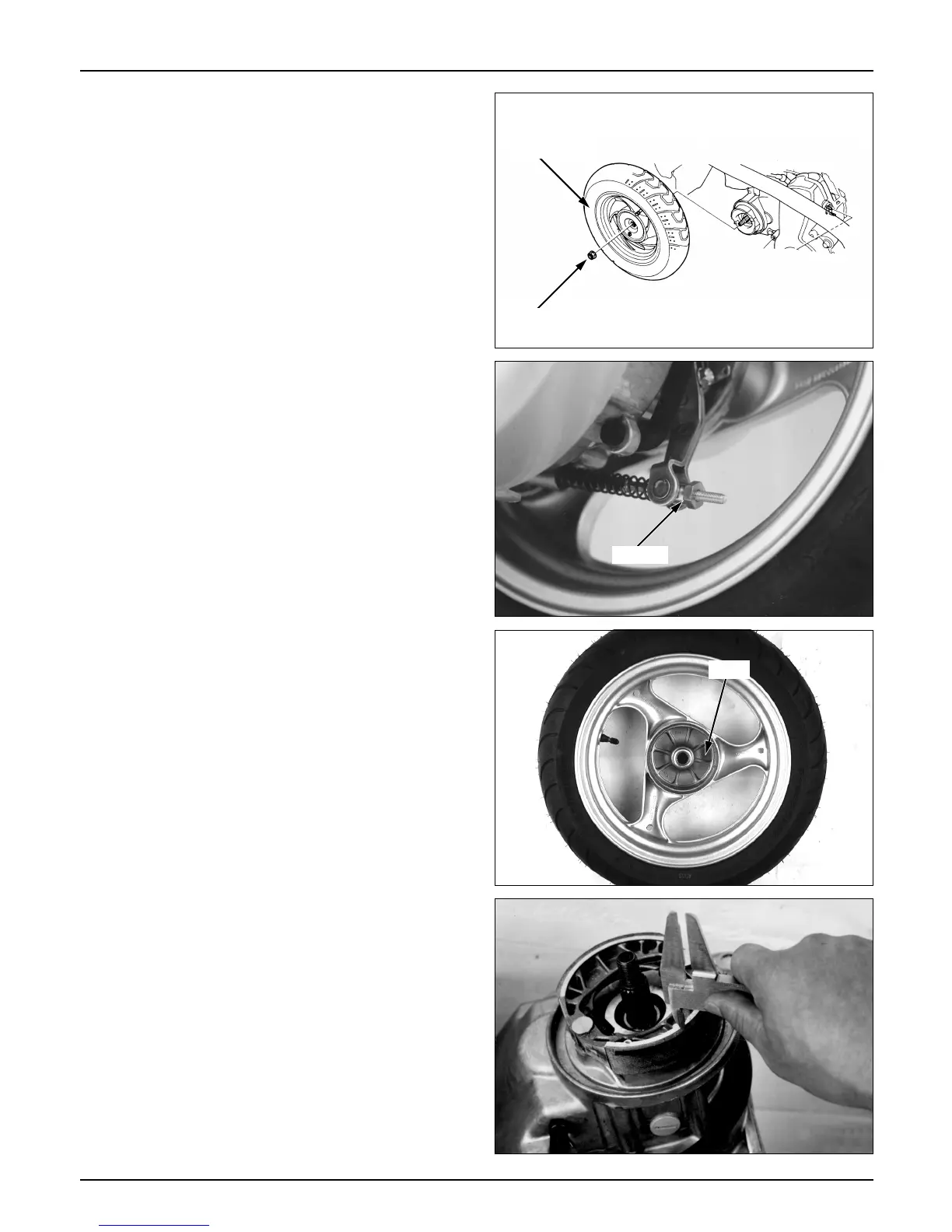

Rear Wheel/Brake/Suspension
● Insert the lock washer, and tighten with the axle
nuts.
Torque value: 6.0-8.0kg-m (60-80N.m, 43-58ft-lb)
● Assemble the brake cable cable and adjust nuts.
● Install the spring on the brake arm, and tighten
with setting bolts.
Rear Brake
● Remove the rear wheel.
Inspection
● Measure the brake drum of inner diameter
Service limit: 117mm (4.60in)
● Measure the thickness of the brake lining.
Service limit: 2.0mm (0.08in)
13-4
Drum
Adjuster
Axle nut
Rear wheel
