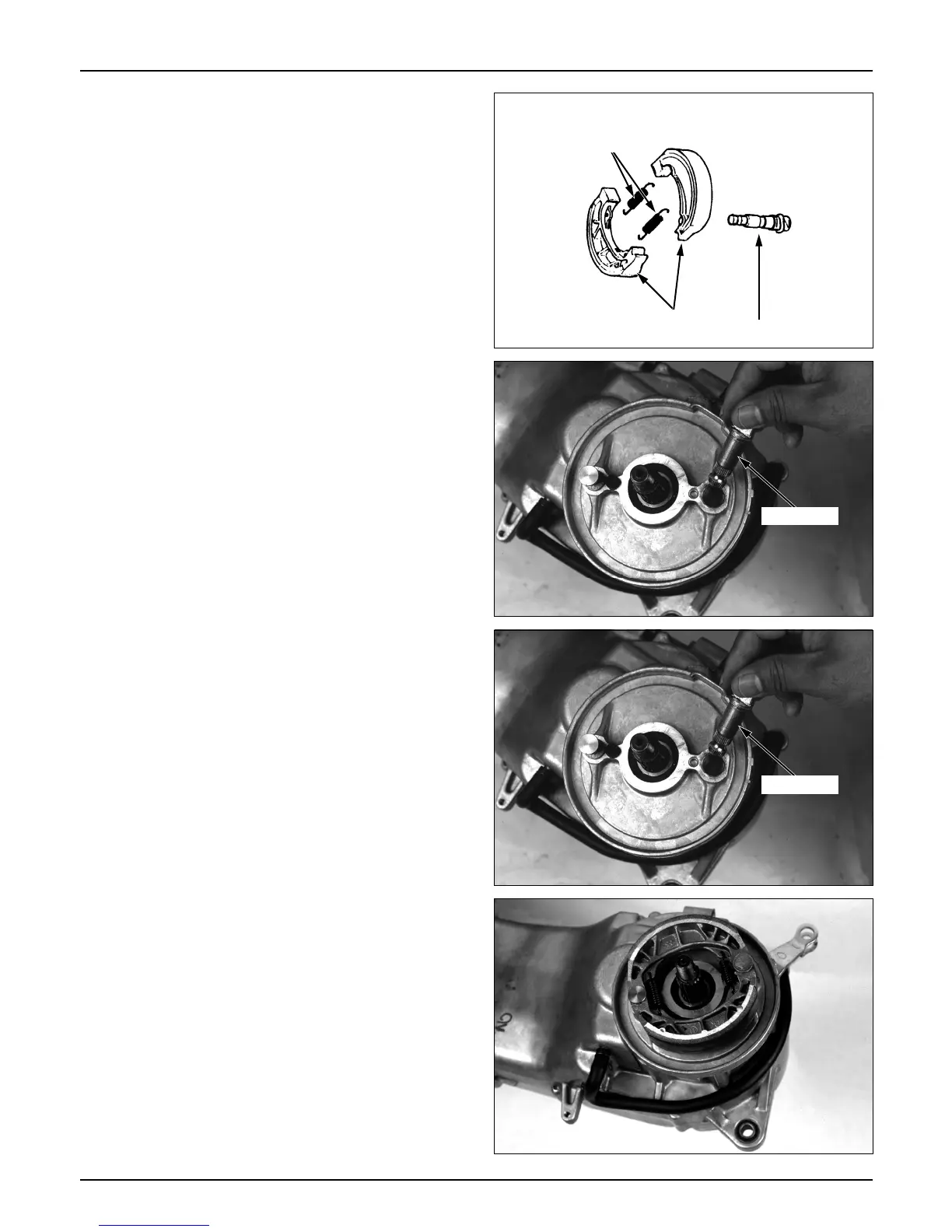

Rear Wheel/Brake/Suspension
Disassembly
● Manually open the brake shoe and remove it.
● Remove the shoe spring from the brake shoe.
● Remove the brake cam.
Assembly
● Apply small amount of grease to the brake cam
and anchor pin.
● Assemble the brake cam.
● Assemble the brake shoe and spring.
● Assemble the rear wheel.
13-5
Brake cam
Brake cam
Brake shoe
Shoe spring
Brake cam
