Rear Wheel/Brake/Suspension
Assembly
●

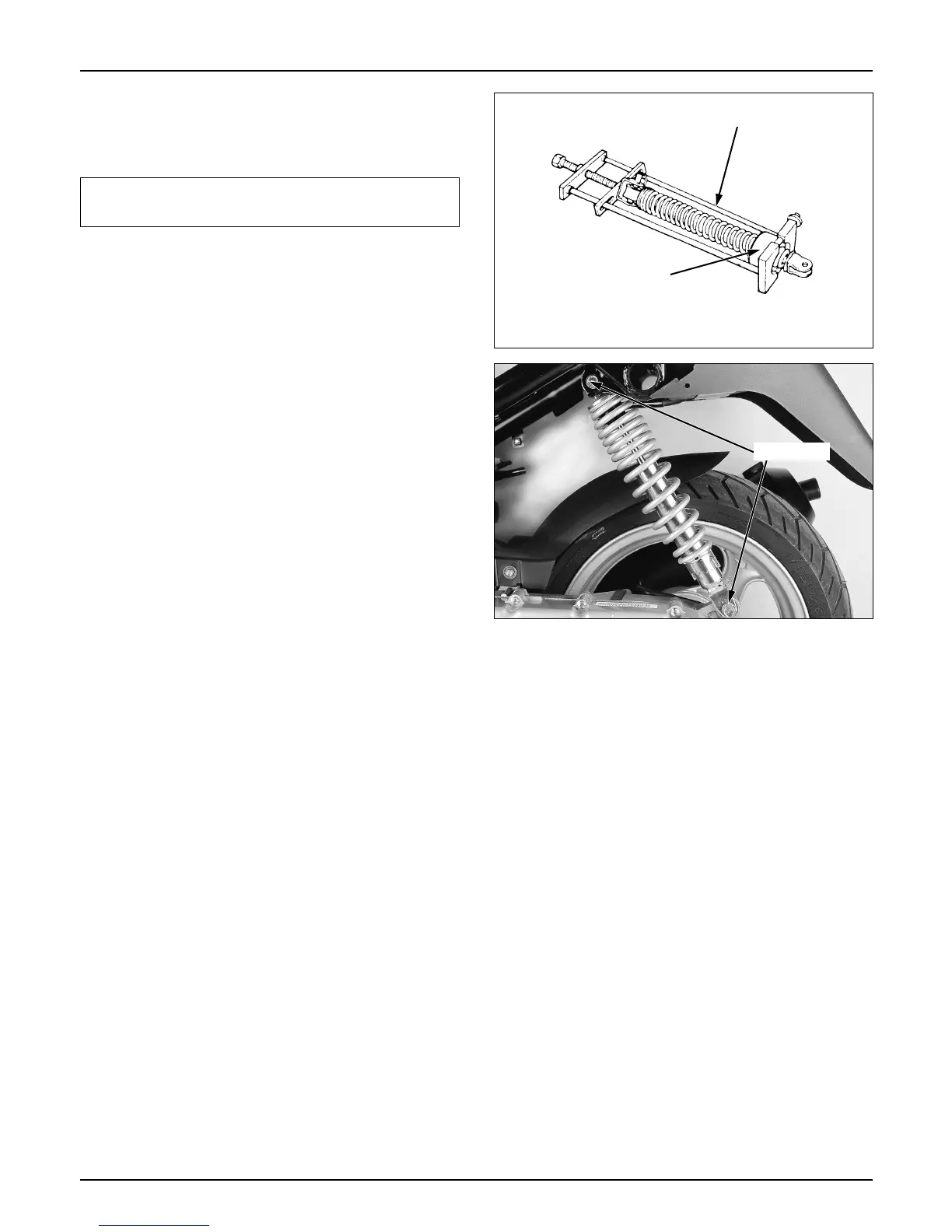

Assemble the spring, spring guide, and stopper rubber.
NOTE
● Apply thread locking agent to the lock nut, and
install the rear cushion compressor attachment on
the damper rod.
● Fix the upper joint, and tighten the lock nut.
Torque value: 2.0kg-m(20N.m, 14ft-lb)
Tools: Rear compressor
Rear cushion compressor attachment
Installation
● Assemble the rear cushion.
●
Tighten the top and bottom of the cushion with bolt.
Torque value: Upper side 2.7kg-m(27N.m, 20ft-lb)
Lower side 4.0kg-m(40 N.m, 29ft-lb)
13-7
Install the spring with its narrow pitch side
facing upward
Setting bolt
Cushion compressor
Compressor
attachment
To Next Page
