Brake System
●If the brake bleeder is not used, do the following.
●First, fill the brake fluid up to the upper limit line.
Connect the hose to the bleeder valve to receive
brake fluid.
① Squeeze the brake lever completely loosen the
bleeder valve 1/2 turn, and tighten it again.
NOTE
② Release the brake lever slowly to its fullest
extent, and leave it unattended for a few
seconds.
③ Repeat the process specified in item ① and ②
until there is no more air bubbles coming out
of the bleeder valve.
● Check the fluid level often, and add fluid if the
fluid level is near the lower level.
● If no air leaks out of the bleeder hose, operate the
brake lever to check the presence of air.
● Assemble the bleeder valve.
Torque value: 0.6kg
––
m(6N.m, 4ft-lb)
● Add brake fluid up to upper level. Install
diaphragm and mater cylinder cap.
Torque value: 1.0kg
––
m(10N.m, 7ft-lb)
Brake Pad
Replacement
● Always replace the brake pads in pairs.
● Open the lock plate tangs, and loosen the pad pin
bolt.
14-3
Do not release the brake lever until the bleeder
valve is tightened.

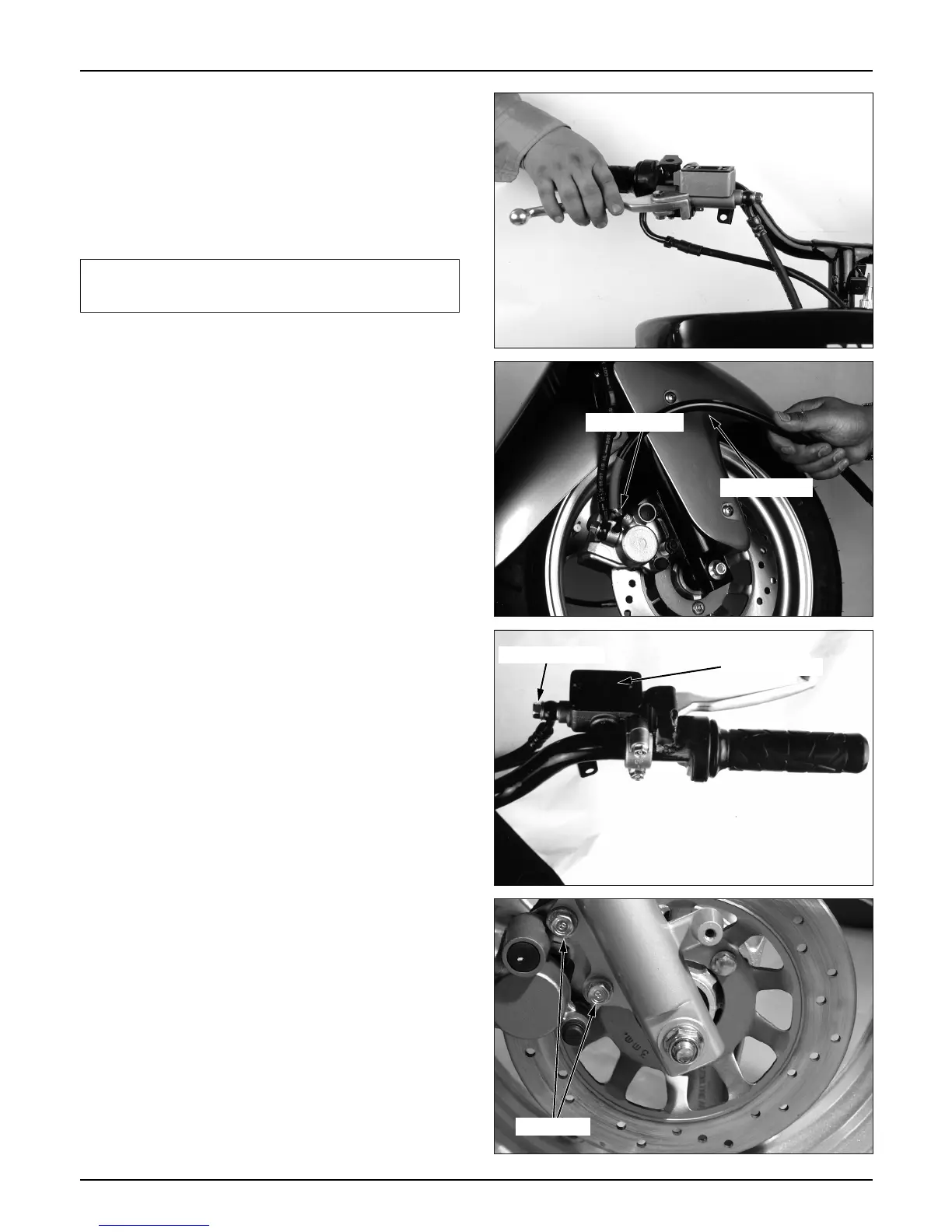

Master cylinder
Brake hose bolt
Bleeder hose
Bleeder valve
Fixing Bolt
To Next Page
