Brake System

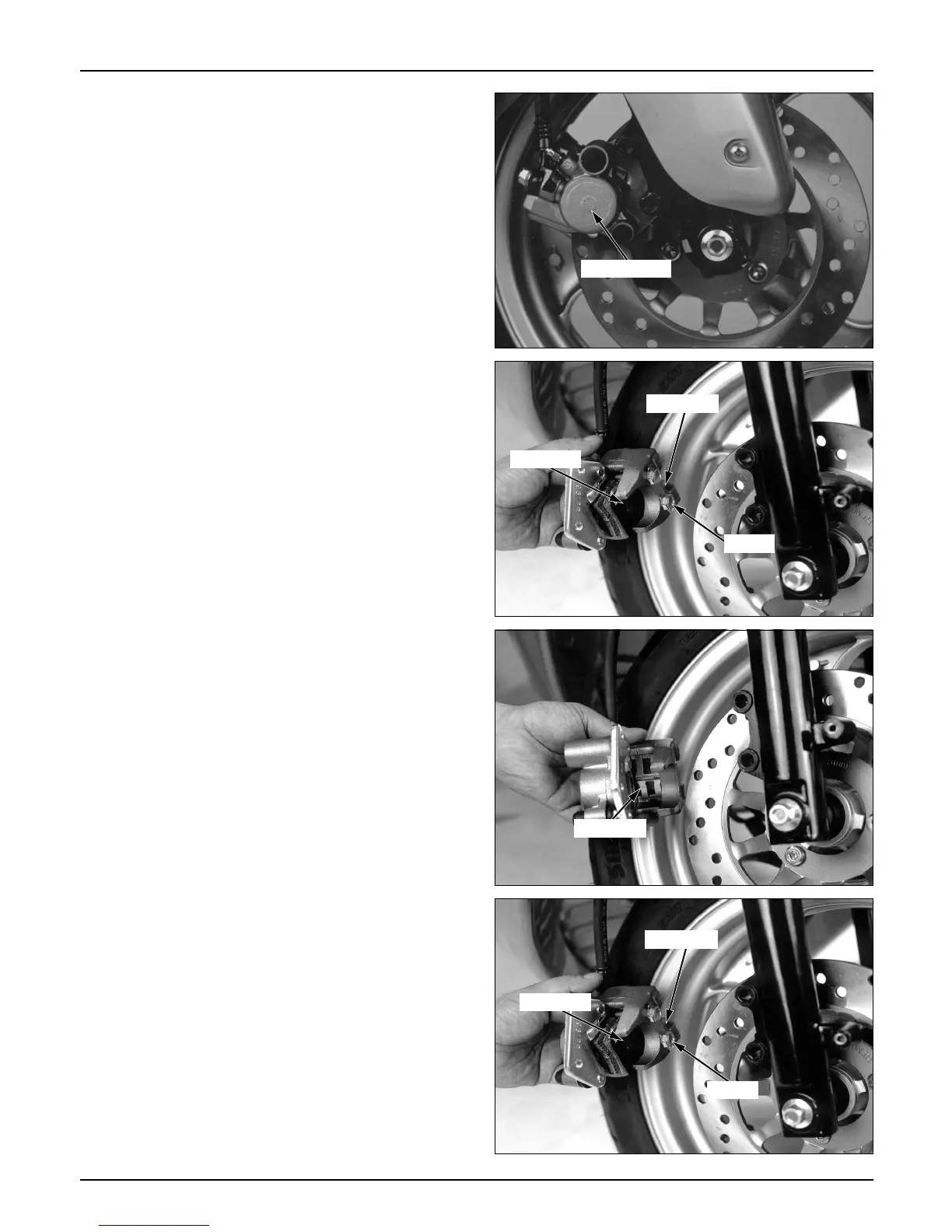

● Remove the brake caliper from the right front fork.
● To install a new brake pad into the brake, press
the piston to return to the original position.
● Remove the pad pin bolt, lock plate, and brake
pad.
● Verify that the pad spring is installed in specific
position.
● Install a new brake pad, lock plate, and pad pin
bolt.
14-4
Brake caliper
Lock plate
Pin bolt
Brake pad
Lock plate
Pin bolt
Brake pad
Pad spring
