Brake System

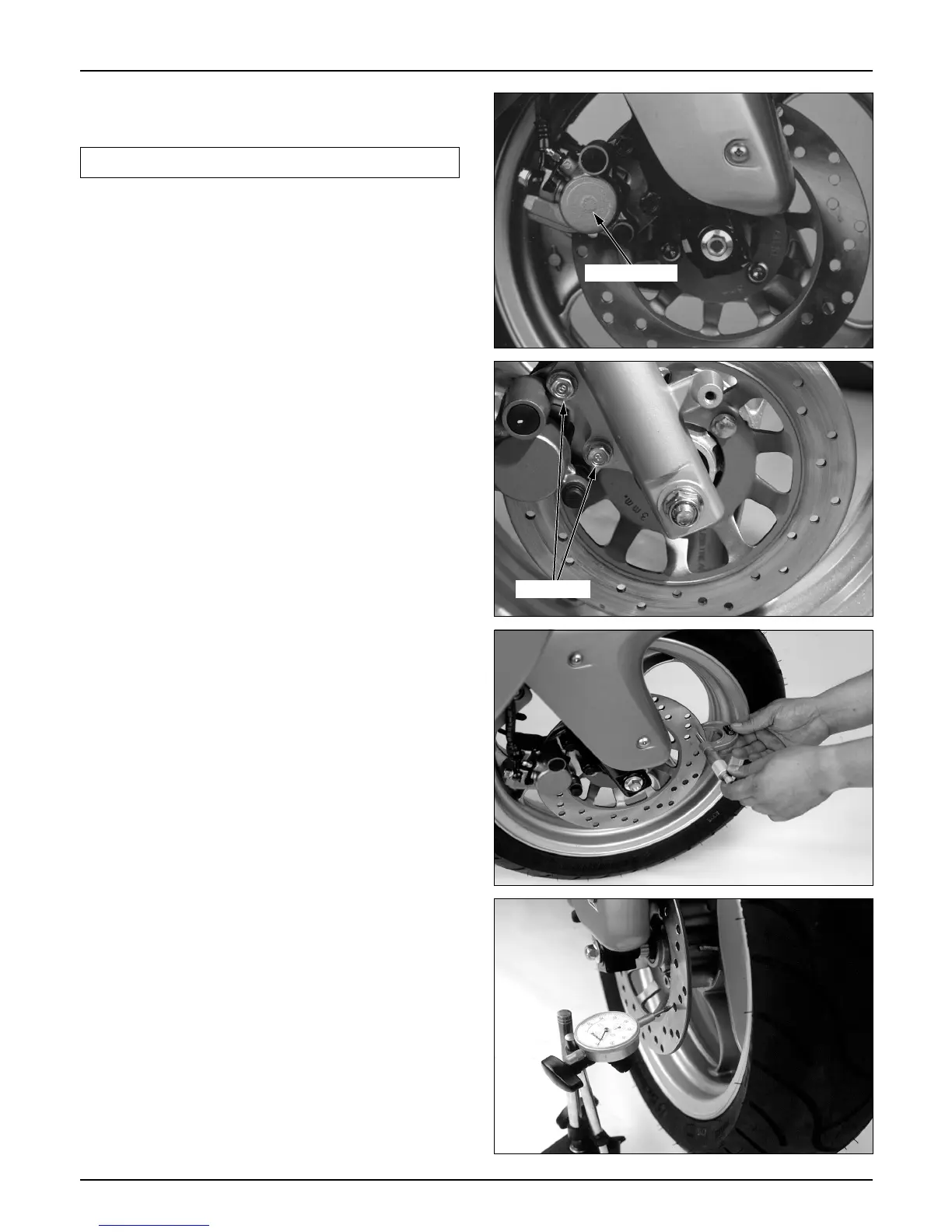

● Install the brake caliper into the right front fork.
NOTE
● Tighten the caliper braket bolt.
Torque value: 2.7kg
––
m(27N.m, 19ft-lb)
● Install pad pin bolt.
Torque value: 1.8kg
––
m(18N.m, 13ft-lb)
● Bend the lock plate tangs, and fix the pad pin bolt.
Brake Disk
Inspection
● Measure the thickness of the disk.
Torque value: 3.0mm(0.1181in)
● Check the brake disk for vibration.
Service limit: 0.02mm(0.0008in)
14-5
Be careful not to damage the brake pad.
Brake caliper
Fixing Bolt
To Next Page
