DAELIM NS125III

Brake System

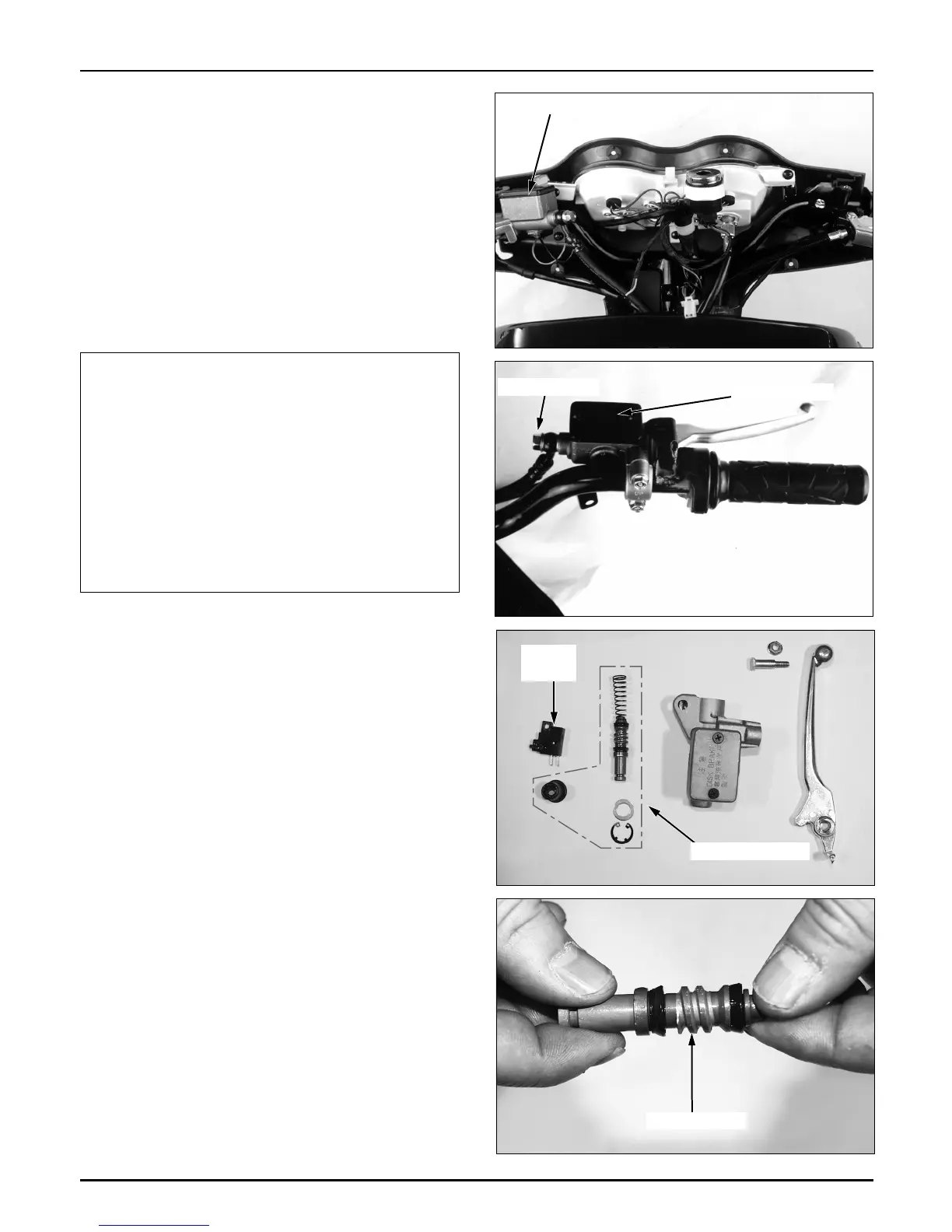

Master Cylinder
Removal
● Remove the back mirror.
● Remove the front handle cover.(󳫢 4–8)
● Remove the the rear handle cover.(󳫢 4–8)
● Disconnect the front brake switch wire.
● Drain the brake fluid.
● Remove the front brake hose from the master
cylinder.
CAUTION
● Remove the front master cylinder holder, and lift
out the master cylinder.
Disassembly
● Remove the front stop switch.
● Disassemble the piston boot, cir clip from the
master cylinder.
TOOL : SNAP RING PLIERS
● Disassemble the washer, piston, spring from the
master cylinder.
● Clean the master cylinder, reserve, master piston
with the recommended brake fluid.
Master cylinder inspection
● Check the piston periphery for kink or scratch.
● Check the primary and secondary cups for wear.
󳢯Brake fluid causes damage to the painted, plastic
or rubber parts. Do not spill fluid on these parts.
󳢯If contaminated, gently wipe off the fluid with a
piece of cloth or wash in water. Close hose joints
properly to prevent leakage of brake fluid.
󳢯Clean the disassembled parts with brake fluid,
and use compressed air to verify each passage is
not clogged.
󳢯Do not allow the disassembled parts to be
contaminated by waste material or dust.
Stop
switch
Master cylinder set
Master cylinder
14-8
