DAELIM NS125III

Brake System
14-7

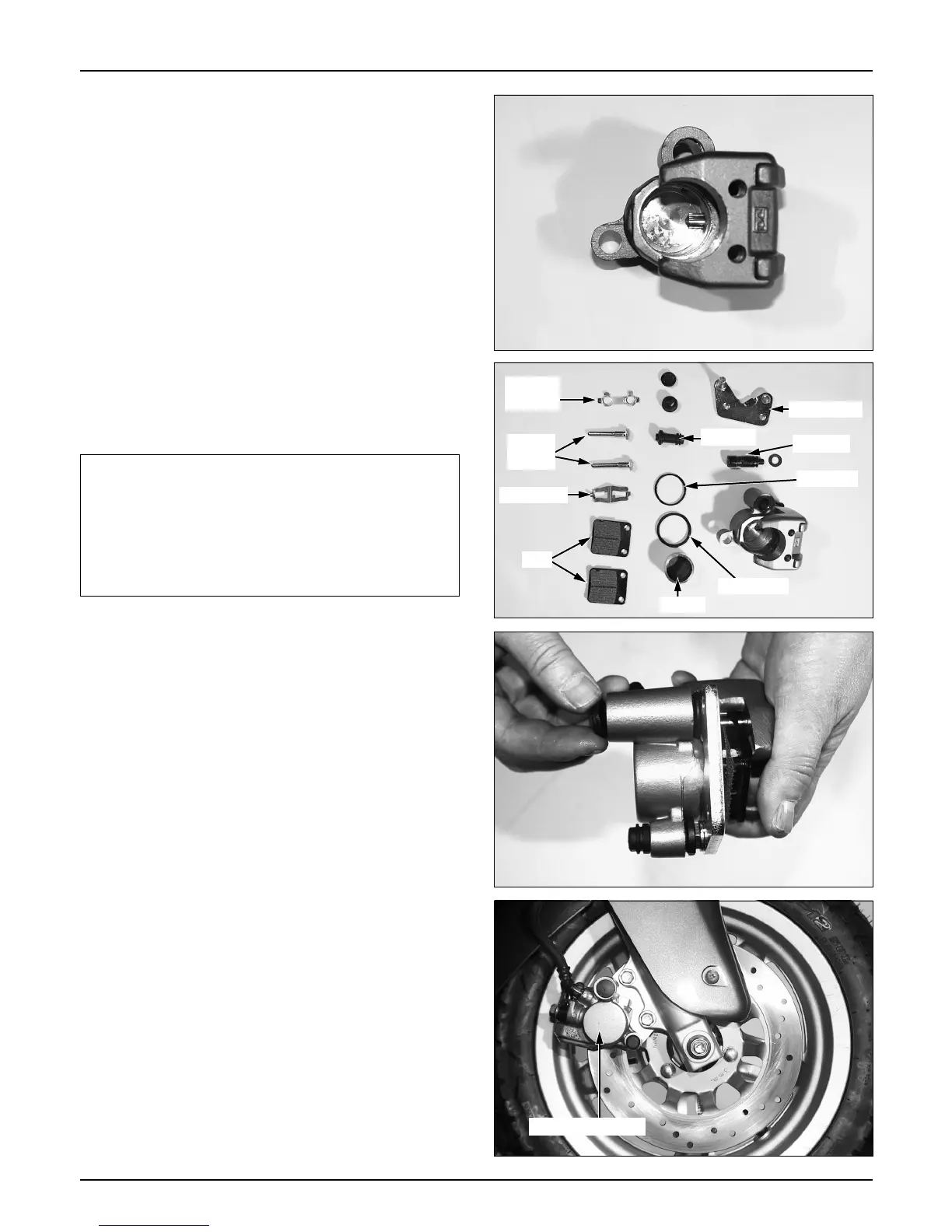

Caliper piston
● Check the caliper piston O.D. part for scratches
or other damage.
Installation
● Clean the piston seal and the dust seal with the
brake fouid and install them in the caliper. Install
the piston in the caliper with the groove side of
the piston facing the pad.
NOTE
󳢯Make sure that each part is free from dust or dirt
before reassembly.
󳢯Replace the dust seals and piston seals as a set
whenever they are removed.
󳢯When cleaning with the brake fluid, use the
specified brake fluid.
Rear bracket
Slide pin
pin bush
Dust seal
Piston seal
Piston
Tongued
washer
pin
hanger
Pad spring
Pad
Front brake caliper
● Apply the silicone grease to the pin bush.
● Connect the pin bush to the portion of the caliper.
● Install the pad spring in the caliper.
● Install the caliper pin bolt and the slide pin in the
caliper.
● Install the brake pad and the hanger pin in the
caliper.
● Install the plug dust in the slide pin.
● Install the brake caliper to the front fork, and
connect the brake hose to the caliper, and install 2
sealing washers and the brake hose bolt.
Torque: 3.5kg-m (35N
··
m, 25ft-16)
● Install the slide pin cap.
● Fill the brake fluid, and bleed air. (󳫢14-2)
