Charging System/Battery
Battery

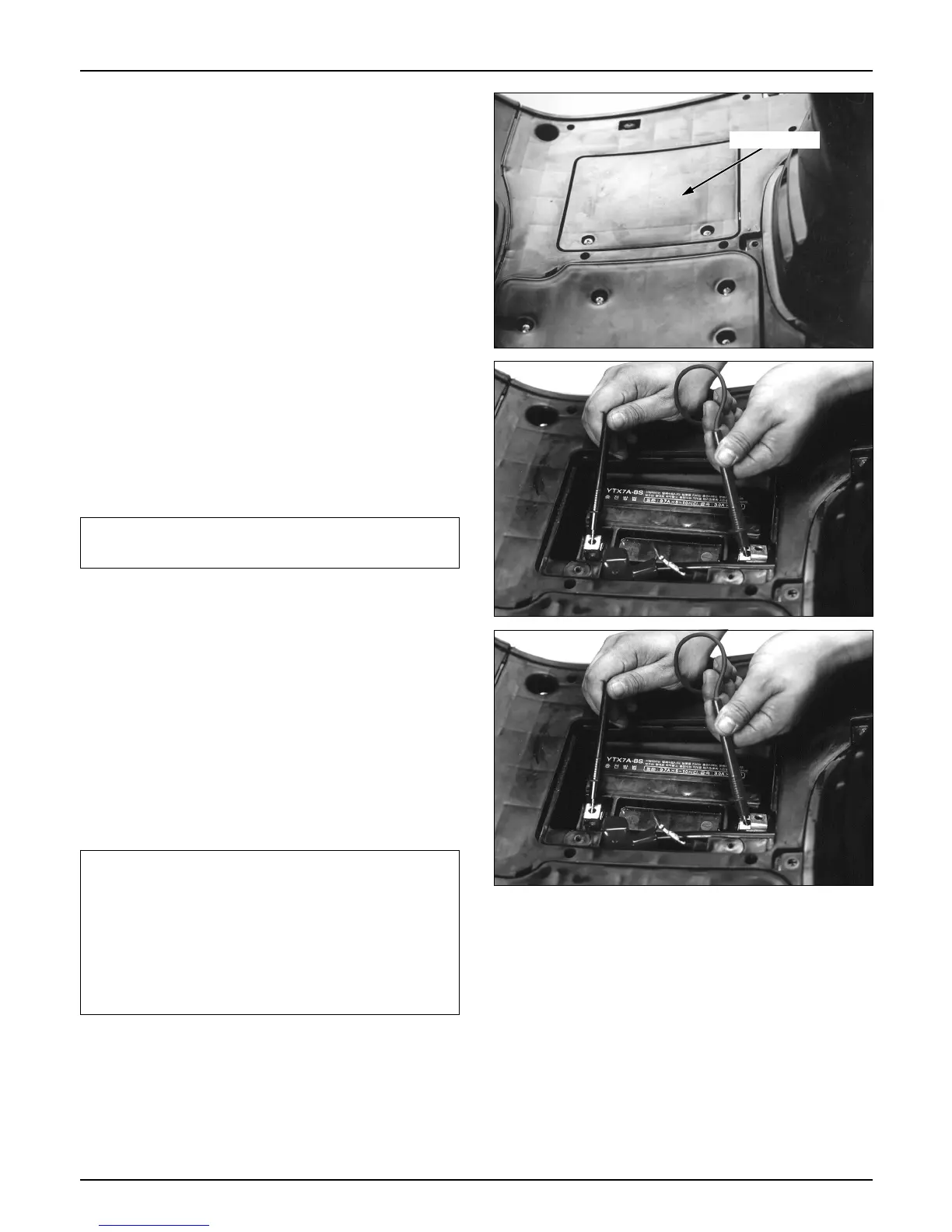

Removal
● Remove the floor panel mat.
● Loosen the 2 battery cover setting bolts.
● Remove the battery cover.
Charging Status (Open Voltage) Inspection
● Remove the battery terminal from the battery.
Check the battery terminal voltage.
Fully charged: 13.0-13.2V
Under charged: Not to exceed 12.3V
NOTE
Charging System Inspection
Leakage Test
● Turn off the main switch, and remove the earth
cable from the battery. Connect an ampere meter
between the battery terminal and the earth cable,
and check current when the main switch is
turned off.
NOTE
Leakage current: Not to exceed 1mA
15-3
Use a PVA multi-tester to check the status of
charging.
Use an ampere meter while sequentially
changing its measuring range from large to
small. If the current level greater than the
measuring limit is measured, the ampere meter
fuse may be cut.
Do not turn on the main switch while current is
being measured.
Battery cover
