DAELIM NS125III

Charging System/Battery

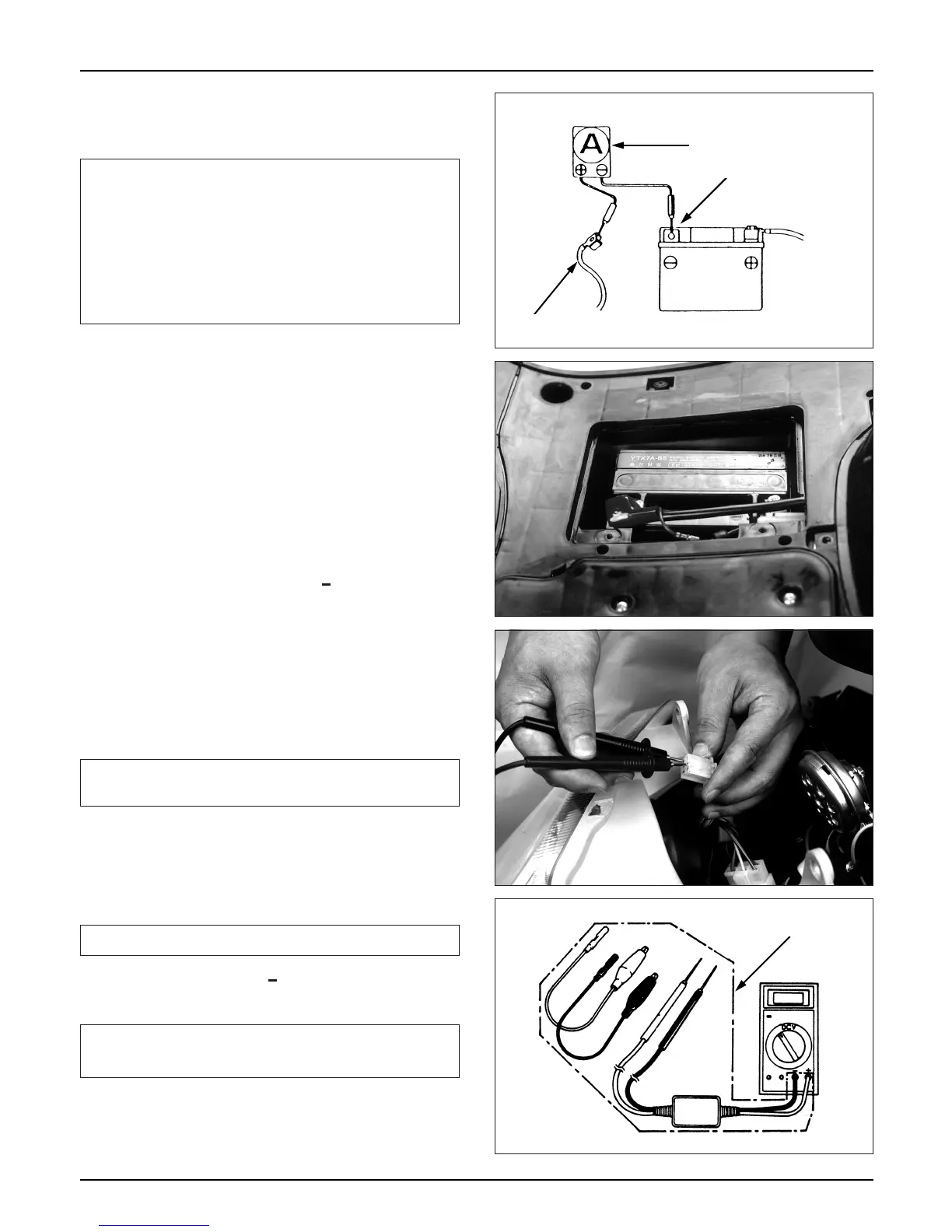

Charging Status Inspection
NOTE
● Warm up the engine, and install a fully charged
battery.
● Connect a voltmeter between battery terminals.
Tester: PVA multi-tester
● Connect an ampere meter between the main fuse
terminals. Start engine increase the engine speed
slowly, and check the charging voltage and
current.
Charging current: 0-0.5A/5,000rpm
Controlled voltage: 14.5
+
0.5V / 5,000rpm
Lighting System Control voltage Check
● Remove the front cover. (⇨ 4-3)
● Loosen the 4 headlight setting screws, and remove
the headlight.
NOTE
● Start engine turn the light switch on set the
dimmer switch to Hi, and check voltage between
the blue (+) and green (-) (lamp side).
NOTE
Controlled voltage : 14.5
+
0.5V
NOTE
Tester: PVA multi-tester
15-4
󳢯Current level changes according to the status of
battery charging. Inspect the fully charged
battery with its voltage running at 13.0~13.2V
between battery terminal.
󳢯If the engine is started by a starter motor, large
level of current may flow sometimes because the
battery power is consumed during starting.
󳢯Check voltage with the headlight coupler
connected.
󳢯Use an AC range for checking.
󳢯Contact with the tester handle bar during test
may induce electric-shock.
Ampere meter
Battery (-)
Earth cable
PVA adopter
