Lubrication
2-4

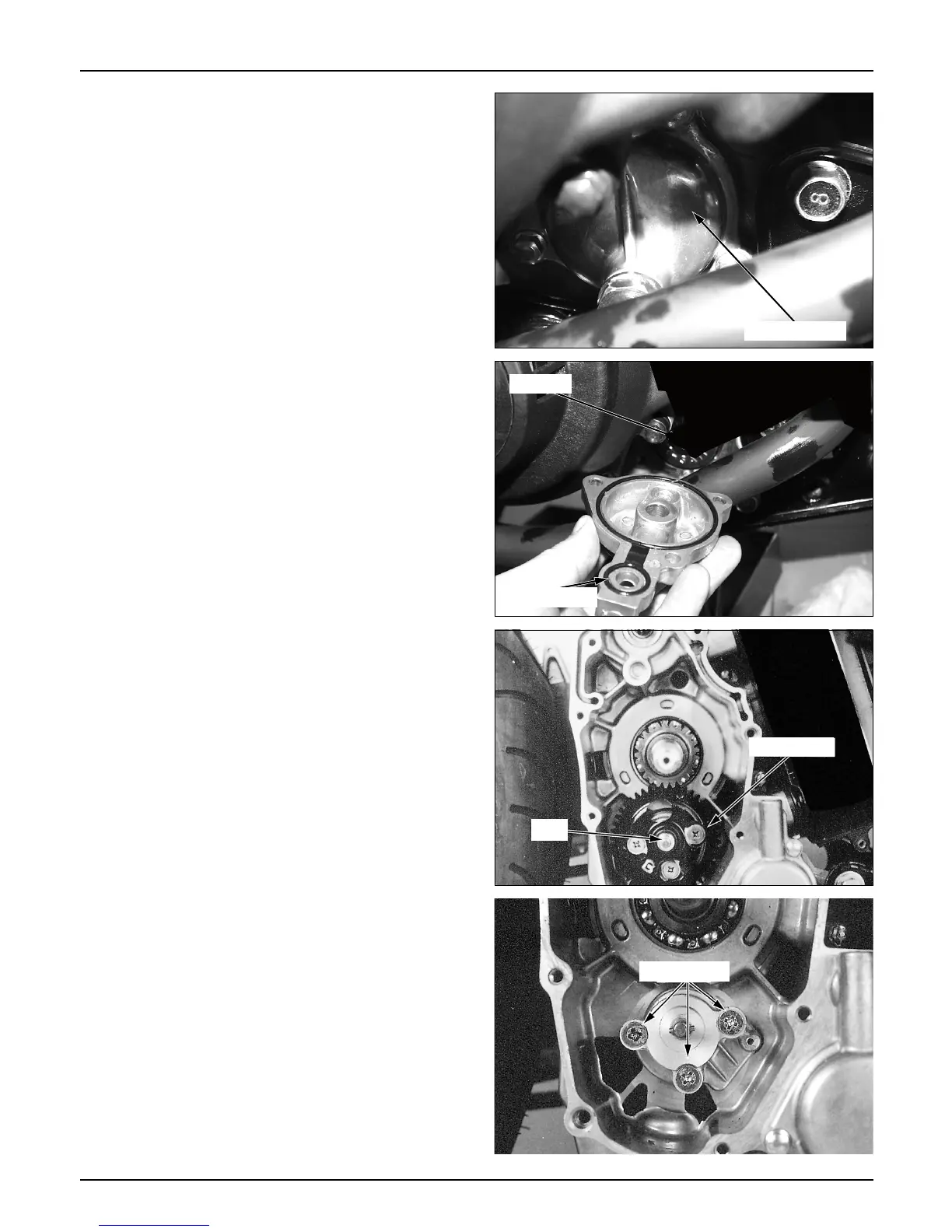

Oil Filter Element Change
● Drain engine oil. ( 2-3)
● Remove the oil filter cover bolts, filter cover, filter
element and spring.
● Change the oil filter element with a new one.
● Check the relief valve inside the oil filter cover for
satisfactory operation.
● Check if the oil filter seal is in good condition.
● Assemble the filter element spring and filter cover,
and tighten bolts.
Torque value: Oil filter cover 1.1kg-m(11N.m.8ft-lb)
Oil Pump
● Remove the following parts:
- Luggage box (⇨ 4-5)
- Rear cushion bolt(⇨ 6-2)
- RH. floor side cover(⇨ 4-5)
- Exhaust muffler(⇨ 4-9)
- Center cover (⇨ 4-4)
- Shroud (⇨ 8-2)
- Cooling fan(⇨ 8-2)
- R. Crank cover (⇨ 8-4)
- A.C. generator (⇨ 8-2)
- Starter driven gear and reduction gear (⇨ 8-5)
- Starter clutch (⇨ 8-6)
● Loosen the oil pump drive gear setting nuts.
● Remove the oil pump drive gear.
● Remove the oil pump driven gear.
Oil filter cover
Element
Drive gear
Nut
Setting bolts
Oil filter seal
To Next Page
