3-7
Inspecitions/Adjustments

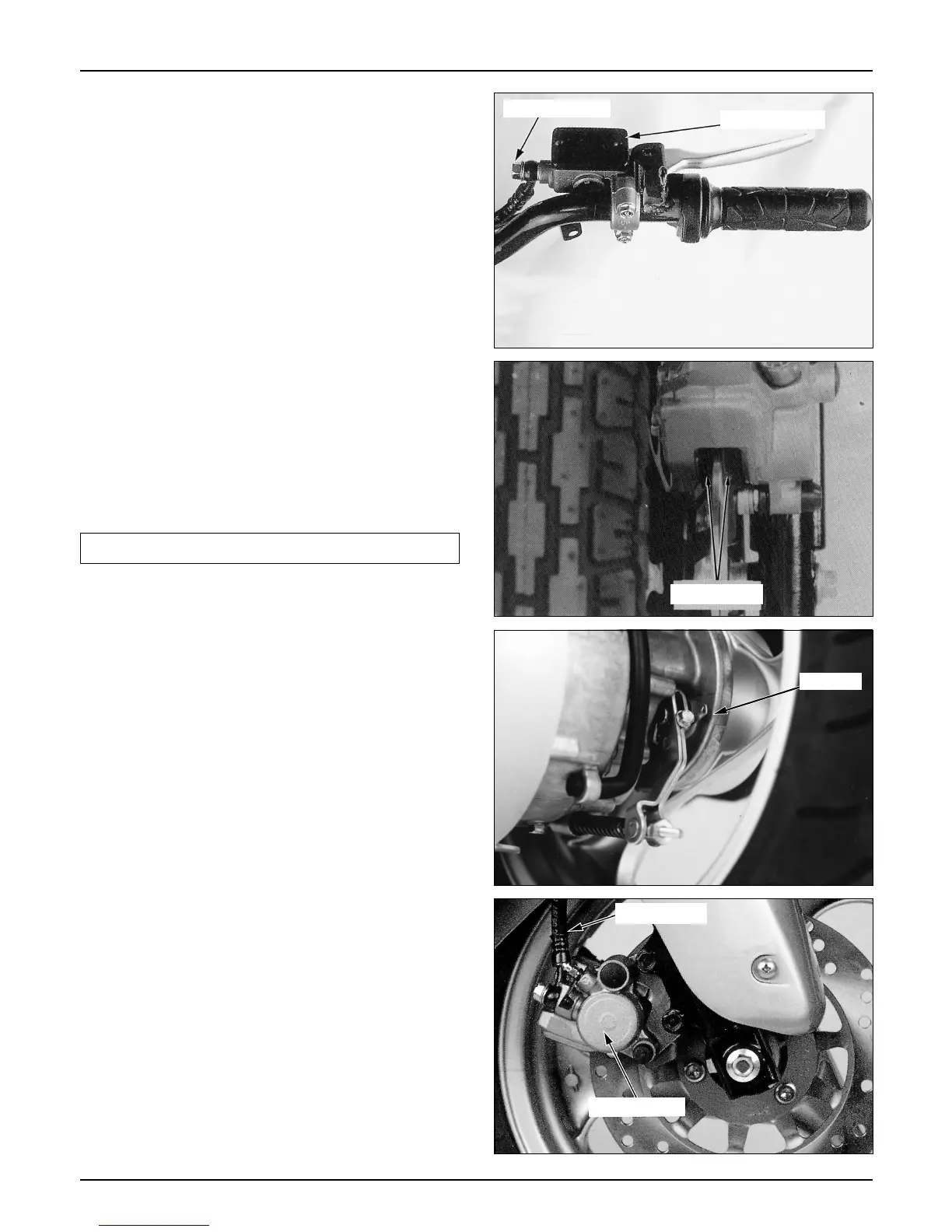

Brake Fluid
● Remove the brake fluid cover.
● Check the oil level inside the front brake reservoir.
If the oil level is near the lower limit line, remove
the reservoir diaphragm and fill DOT 3 and DOT
4 brake fluid to the top limit line.
● If the brake fluid reaches the lower limit line,
check the entire brake system for leaks.
Brake Pad/Shoe
Brake pad replacement
● Check the brake pads for wear.
● If the red mark on the pad reaches the brake disc,
replace the pads.
NOTE
Brake Shoe Replacement
● If the arrow mark of the wear limit aligns with the
‘△’mark when the rear brake lever is fully
pressed, it indicates the brake lining has reached
the service limit. Replace the brake shoes.
Brake System
● Check the front brake hose for cracks or damage.
If any leaks are found, replace immediately.
● Check the brake rod for looseness or damage,
and replace it if necessary.
Brake hose
Brake caliper
Brake hose bolt
Master cylinder
‘△’ mark
Red Mark
Replace the brake pads in sets.
