Inspections/Adjustments
3-8

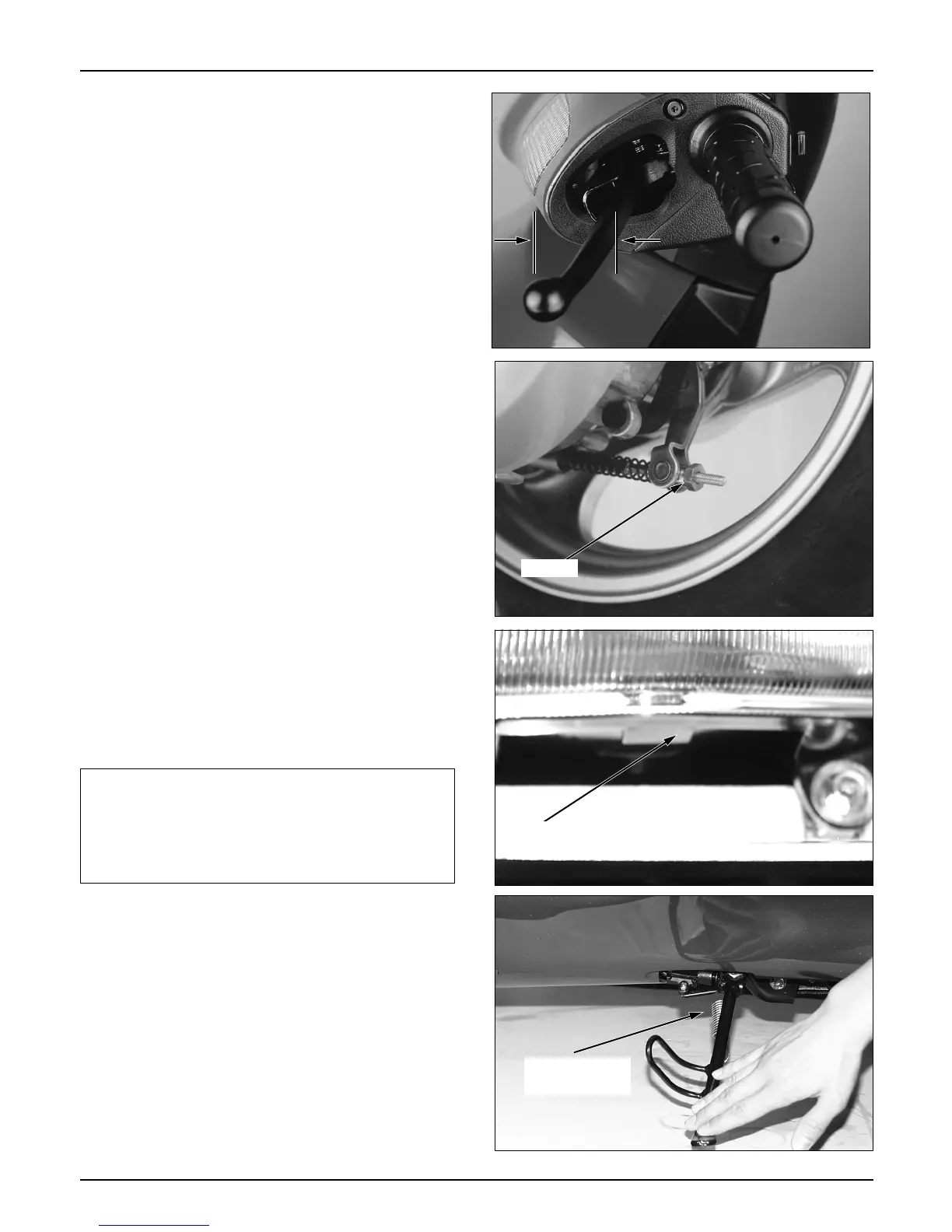

Brake Lever Free Play
● Check the free play after pulling the lever.
Front:10-20mm
Rear:10-20mm
Rear Brake Free Play Adjustment
● Turn the adjuster nut to adjust the free play.
● After initial adjustment, check the operation of
the rear brake light switch. Make additional
adjustments, if necessary.
Adjuster
Headlight Adjustment
● Adjust the headlight beam level by operating the
adjusting screw located on the upper side of the
front fender.
NOTE
Side Stand
● Erect the main stand.
● Pull the lower end of the side stand, and see if it
moves freely.
● If the side stand does not move smoothly, apply
grease to the pivot area.
● If the side stand moves too freely, check the side
stand spring.
● Check the axial movement of the side stand.
Adjust the beam level according to local laws
and regulations.
Improper beam level adjustment may blind on
coming drivers, or may incorrectly light the road
ahead.
Side stand
spring
Adjuster
