External Parts
4-3

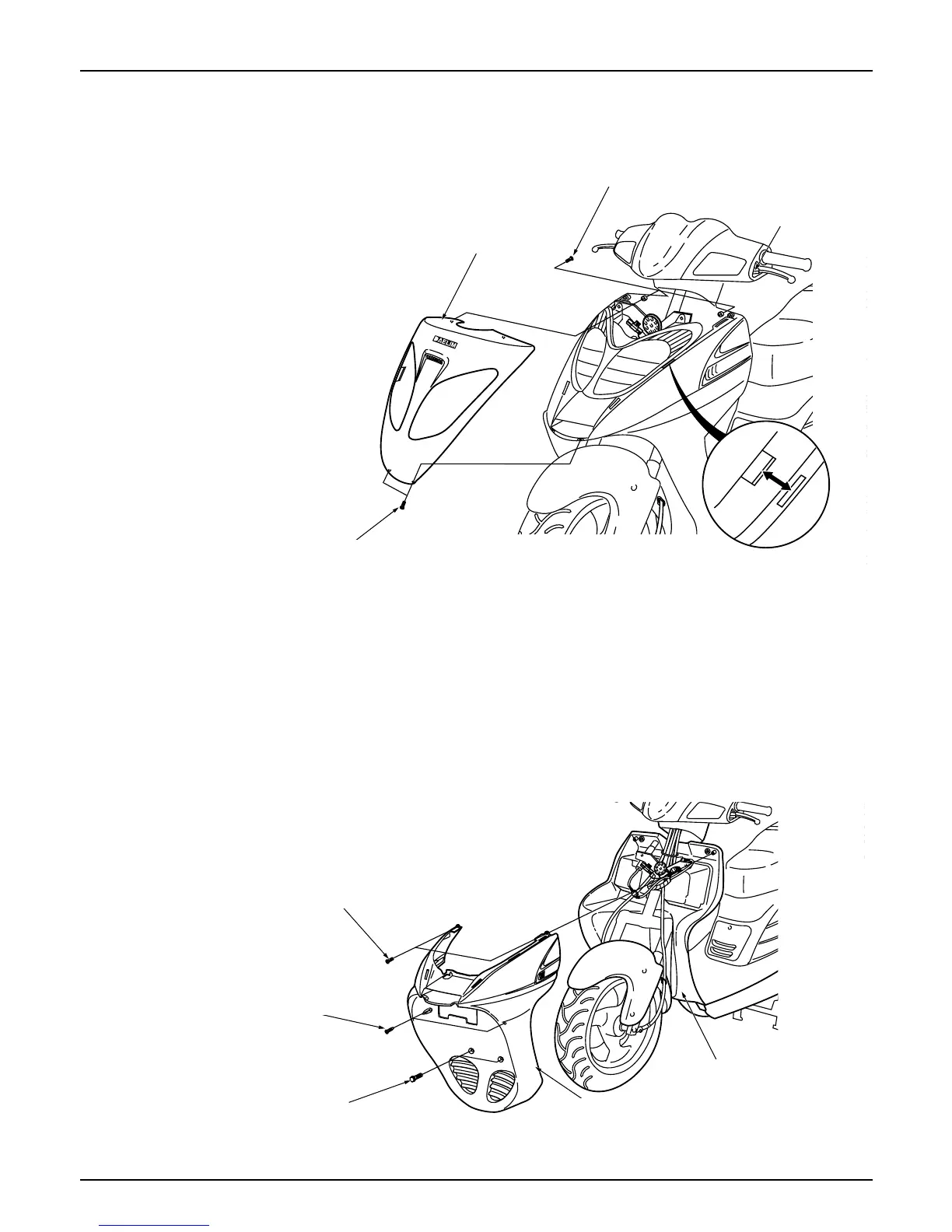

Front Cover removal/Installation
● Loosen the 2 upper screws.
● Loosen the 2 lower screws.
● Pull upward and remove the front cover.
● Install in the reverse order of removal.
Front Side Cover Removal/Installation
● Remove the front fender. (⇨ 4-10)
● Remove the front wheel. (⇨ 12-5)
● Remove the 2 front lower flange bolts and the 2 upper screws.
● Remove the 2 inner box setting screws.
● Remove the front side cover.
● Install in the reverse order of removal.
Screw
Front cover
Screw
Inner box
Front side cover
Bolt
Screw
Screw
To Next Page
