External Parts
4-8
Handle Cover
Front Handle Cover
● Loosen the 4 rear handle cover setting screws.
(1 each on R/L side, and 2 each on meter side)
● Loosen 1 front handle cover setting screw.
● Remove 1 R/L handle side cover lower screw,
and 1 each of the special upper side screws.
● Pull the front handle cover forward, and remove
the wiring.
● Remove the front handle cover.
● Install in the reverse order of removal.
Rear Handle Cover
● Loosen the 3 screws assembled to the handle bar.
● Loosen the 3 screws assembled to the meter.
● Remove the R/L side switch wiring.
● Remove the rear handle cover.
● Install in the reverse order of removal.
Rear view mirror
Bolt
Screw
Screw

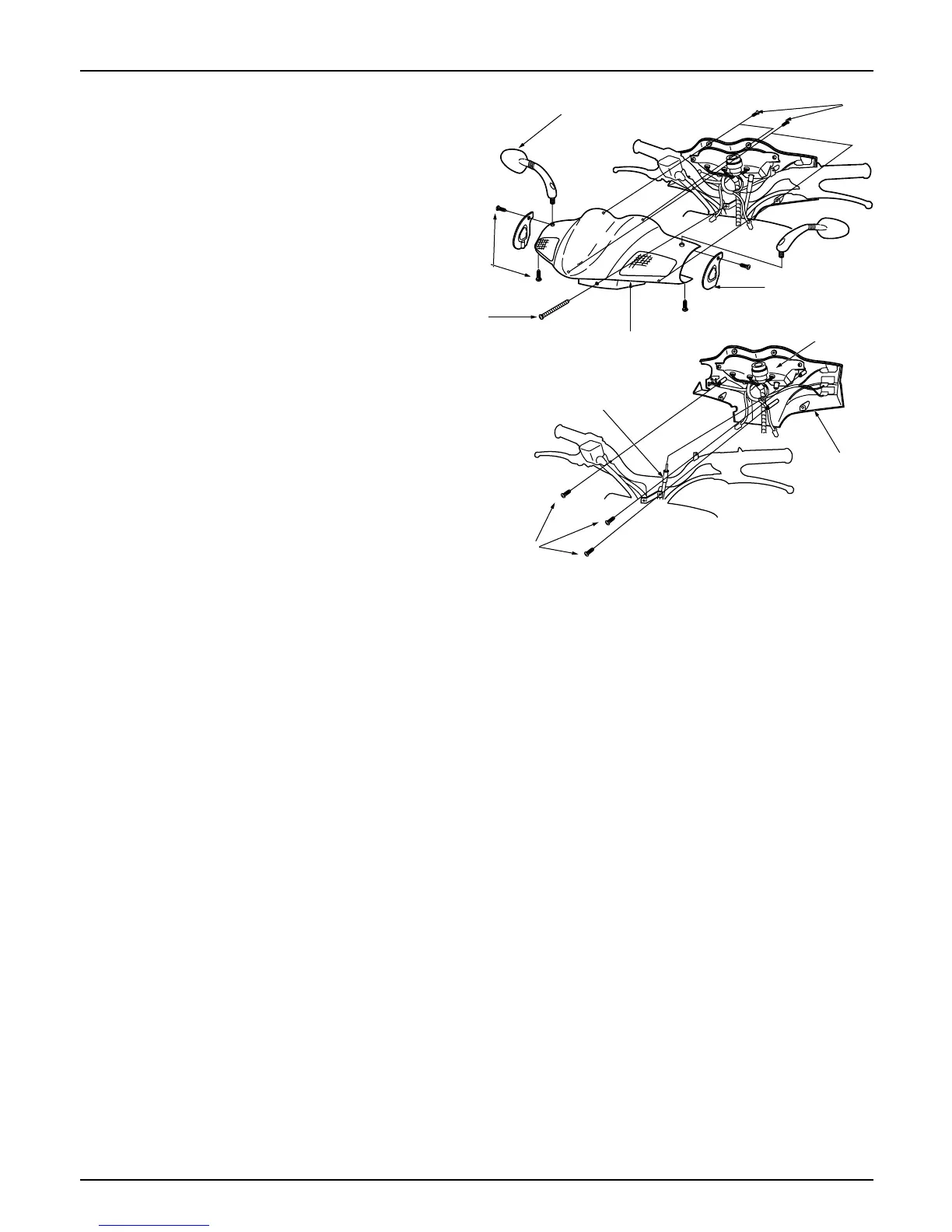

Front handle cover
Handle side
cover
Meter
Rear handle
cover
Speedometer cable
Screw
To Next Page
