Tail Combination-Light
●Remove the following parts.
- Luggage box. (⇨ 4-5)
- Luggage carrier. (⇨ 4-6)
- Body cover. (⇨ 4-6)
- Rear under cover. (⇨ 4-6)
● Loosen the 2 bolts assembled
to the frame rear part.
● Loosen the 2 R/L side setting
bolts.
● Remove the tail combination-
light wiring.
● Remove the tail combination-
light
● Install in the reverse order of
removal.
4-7
External Parts

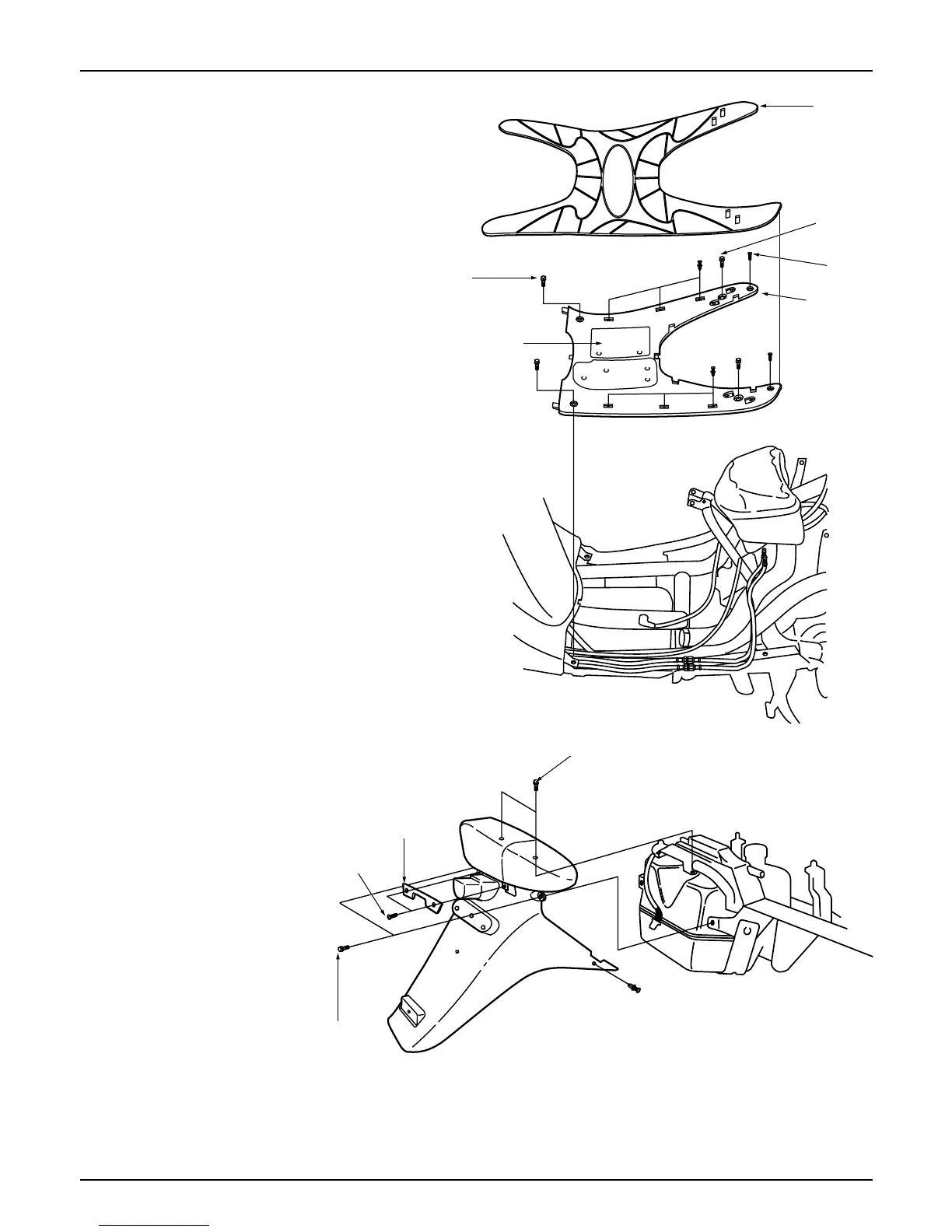

Floor Panel/Battery Cover
● Remove the center cover. (⇨ 4-4)
● Loosen 2 each of the R/L pillion step
cover setting screws of the floor mat, and
remove the floor mat.
● Loosen the 2 battery cover setting
screws, and remove the battery cover.
● Withdraw the battery wiring, and
remove the battery.
● Remove the air cleaner duct.
● Loosen the 4 setting bolts.
● Remove the side cover. (⇨ 4-5)
● Remove the 4 center cover setting
screws.
● Remove the floor panel.
● Install in the reverse order of removal.
Floor
mat
Screw
Floor panel
Bolt
Bolt
Bolt
Rear under
cover
Screw
Bolt
Battery cover
cover
