DAELIM NS125III

External Parts
4-6
Rear Carrier
● Loosen 1 each of the R/L flange bolt set on the
body cover side.
● Loosen the 2 flange bolts set on top of the body
cover.
● Remove the rear carrier.
● Install in the reverse order of removal.
Body Cover/Rear Cover
● Remove the rear carrier. (⇨ 4-6)
● Remove the luggage box. (⇨ 4-5)
● Remove the center cover. (⇨ 4-4)
● Loosen 2 each of the R/L body cover
grill screws set with the floor panel.
● Loosen 1 each of the R/L body cover
clips assembled to the rear fender.
● Loosen 1 each of the R/L flange bolts set
on the frame body.
● Loosen 2 rear under cover setting screws,
and remove the rear under cover.
● Remove the R/L frame body cover.
● Loosen the 2 rear upper cover setting
screws.
● Install in the reverse order of removal.

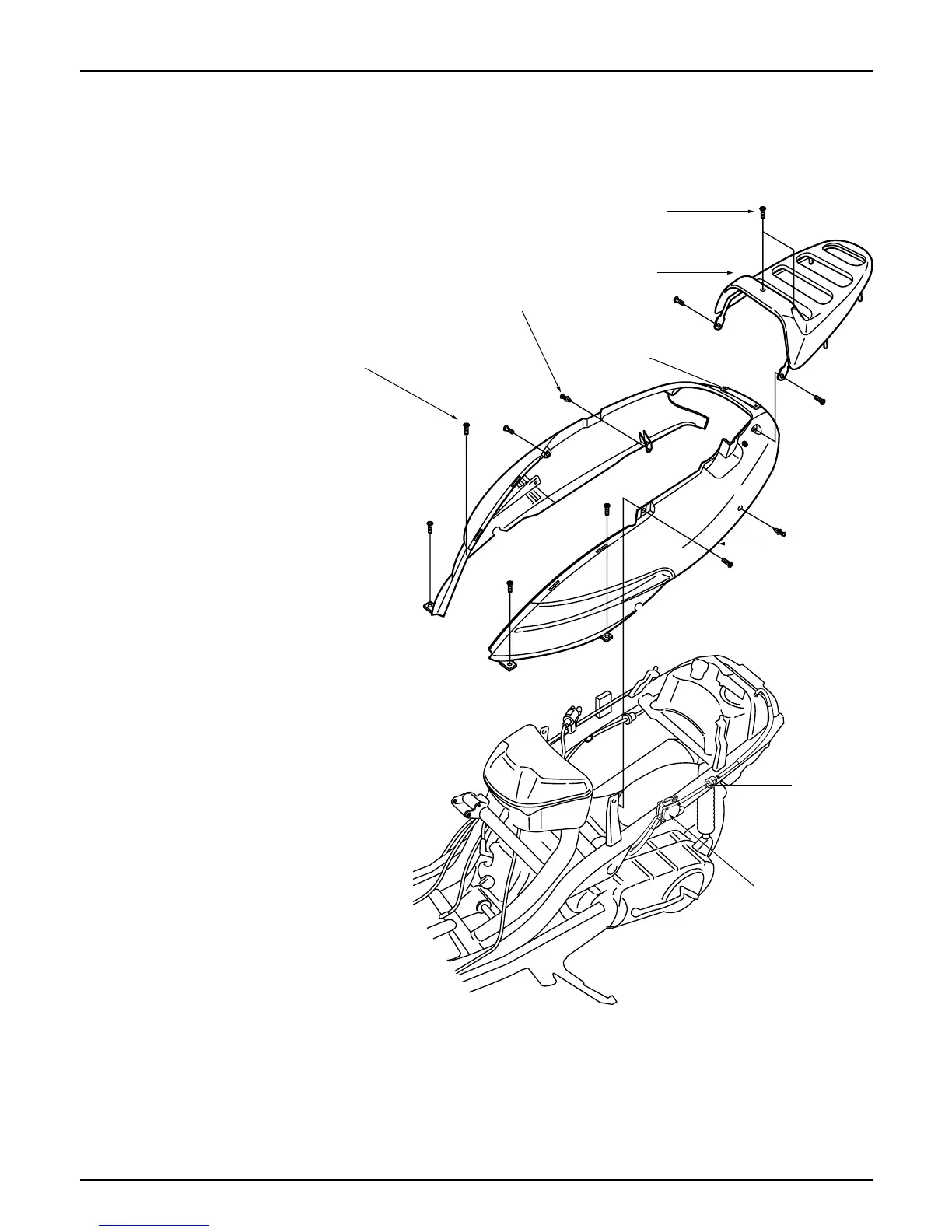

Screw
Body cover clip
Rear upper cover
Frame body
cover
fuel fiter
puel pump
Rear carrier
Screw
