External Parts

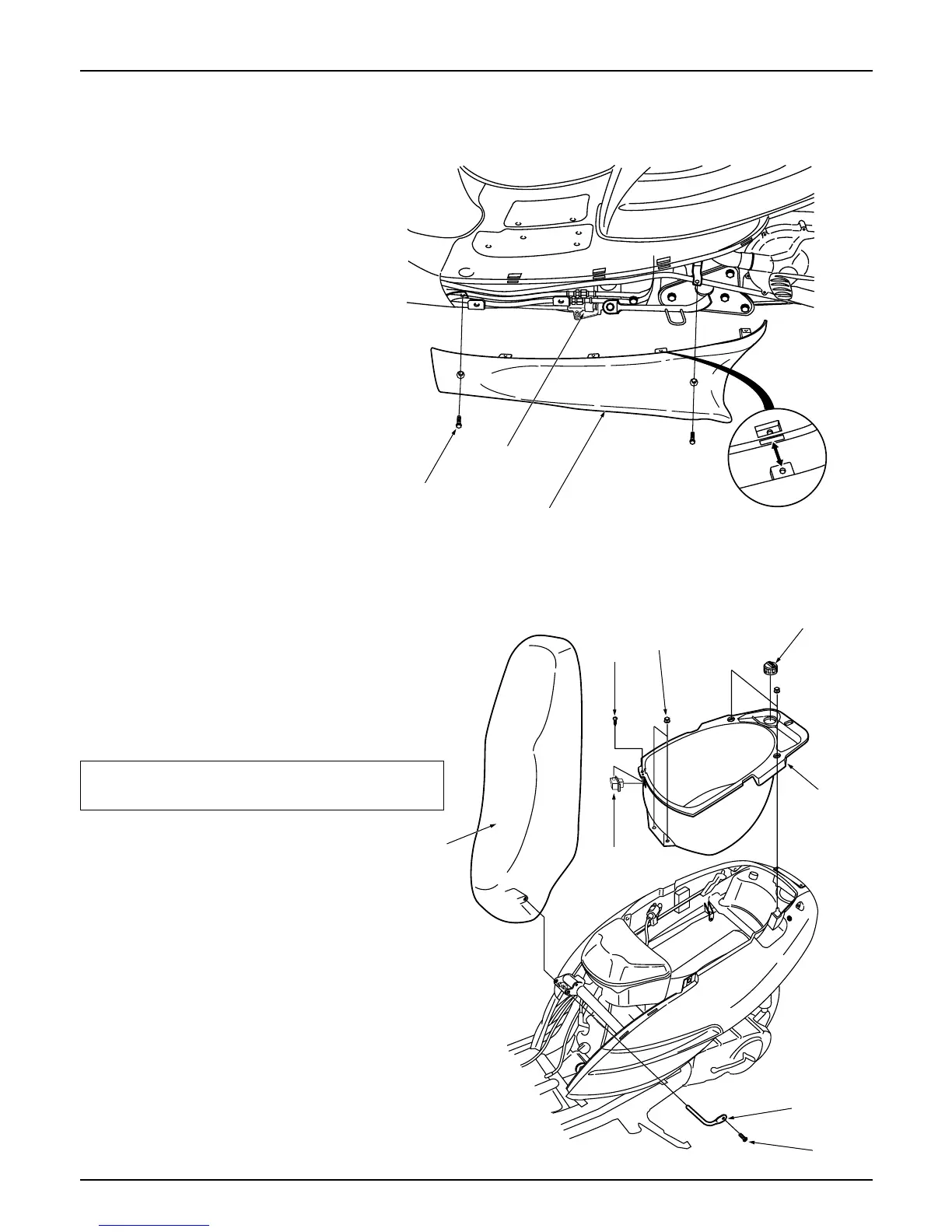

Side Cover
● Remove the floor mat.
● Loosen the 2 screws on the side of the
R/L side covers.
● Loosen 1 each of the R/L screws
assembled to the floor panel.
● Loosen 3 each of the R/L body cover
clips assembled to the floor panel.
● Remove R/L side covers.
● Install in the reverse order of removal.
Luggage Box
● Unlock the system with the main key, and open
the seat.
● Loosen the 4 cap nuts.
● Remove the fuel tank cap.
NOTE
● Remove the luggage box.
● Install in the reverse order of removal.
● Remove the wiring of trunk lamp.
Side cover
Side stand
switch
Seat
Fuel tank cap
Luggage
box
Nut
Screw
Trunk lamp
Hinge
pin
Bolt
Bolt
Assemble the fuel tank cap after removing the
luggage box.
