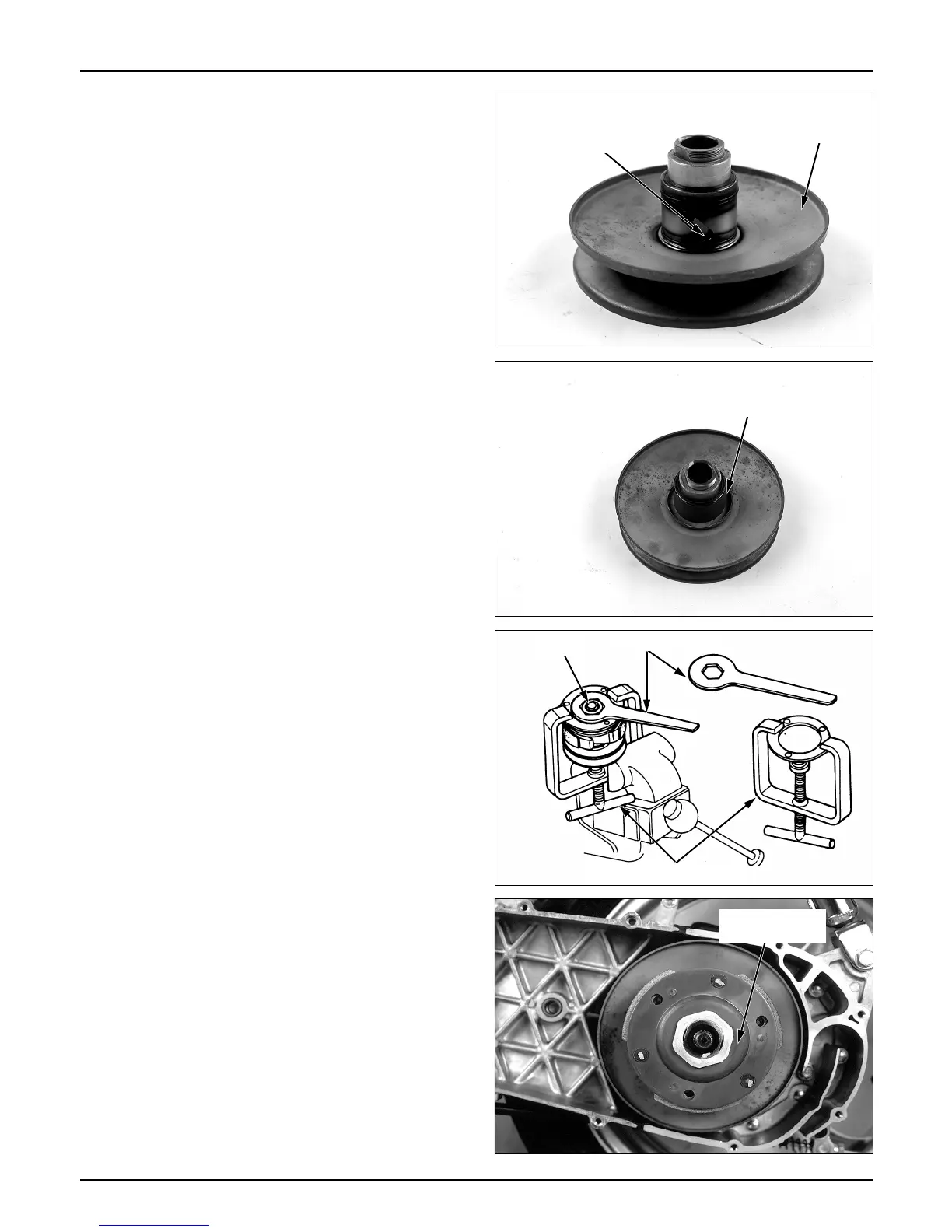

L. Crank Case Cover/Kick Starter/Continuously Variable Transmission
● Assemble the seal collar.
● Assemble the movable driven face, guide roller
and roller pin
● Assemble the driven pulley, spring and clutch in
the clutch spring compressor. Compress the
assembly by turning the tool handle until the
lock nut can be installed.
● Clamp the clutch spring compressor in a vise and
tighten the lock nut to the specified torque using
the lock nut wrench. Remove the spring
compressor.
Torque value: 5.5kg-m(55N.m, 40ft-lb)
Tool: - Lock nut wrench
- Clutch spring compressor
Clutch/Driven Pulley Assembly
● Assemble the driven pulley to the drive shaft.
7-16
Seal collar
Movable driven
face/clutch
Clutch spring compressor
Lock nut wrench
Lock nut
Guide roller
Movable
driven face
