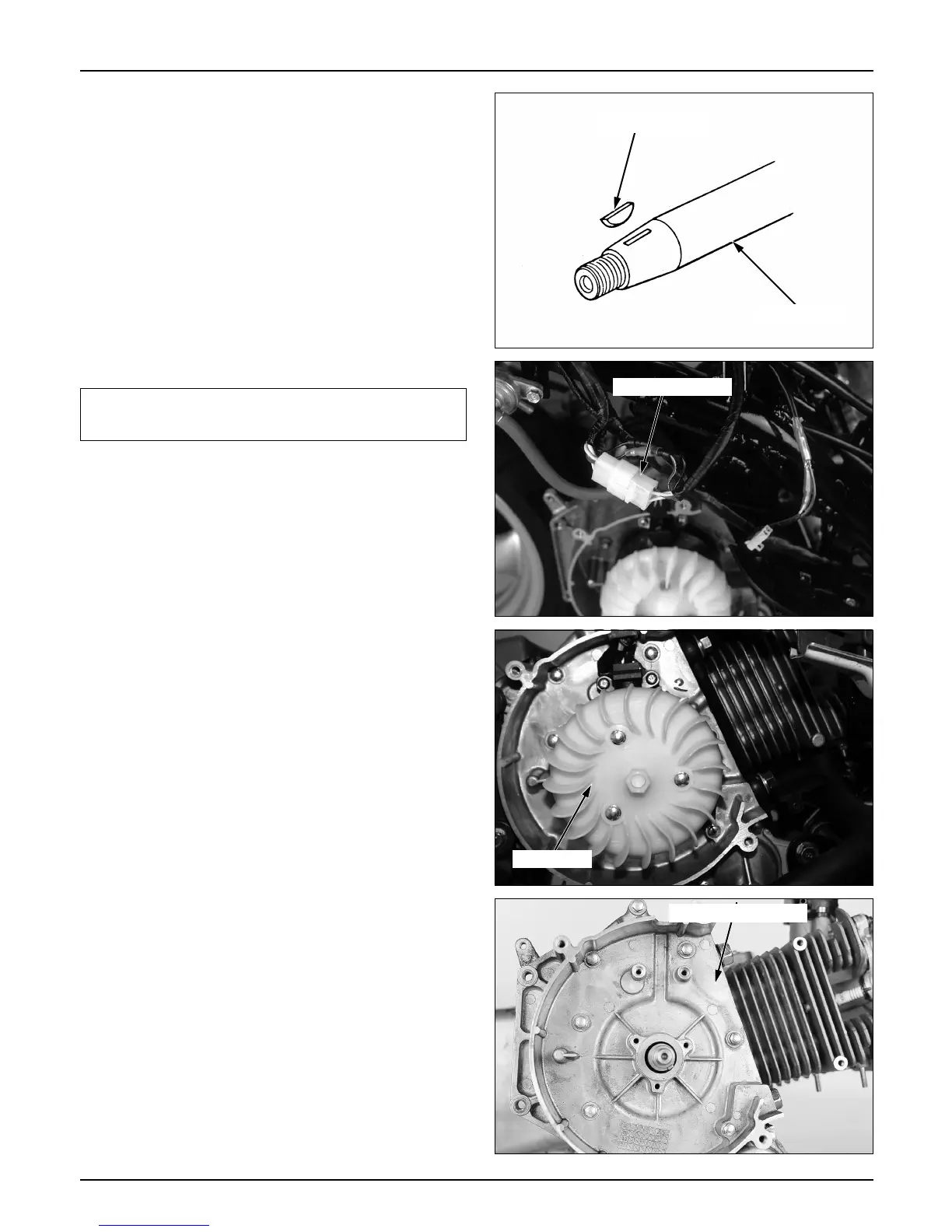

Generator/Starter Clutch
8-4
Assembly
● Clean, and remove dust from the tapered part of the
crankshaft.
● If the flywheel is installed with the tapered part
contaminated by foreign matters, stress may be
applied to the taper contact surface, causing
damage to the key.
● Assemble the woodruff key to the crankshaft.
NOTE
● Temporarily assemble the flywheel nut, and
tighten the rotor bolts after fixing the flywheel
with the holder.
Tool: Flywheel holder
Torque value: 5.5kg-m(55N.m, 40ft-lb)
● Connect the A.C. generator wire.
● Assemble the cooling fan with bolts.
● Assemble shroud. (⇨ 8-2)
● Assemble the body cover and luggage box.
R. Crank Case Cover
● Remove the following parts.
- R/L shroud (⇨ 8-2)
- A.C. generator (⇨ 8-2)
- Radiator (⇨ 2-7)
● Loosen the R. crank case cover setting bolts.
Install the flywheel after verifying bolts and nuts
are not attached to the inside of the flywheel.
Crankshaft
Woodruff key
R, Crank case cover
Generator wire
Cooling fan
To Next Page
