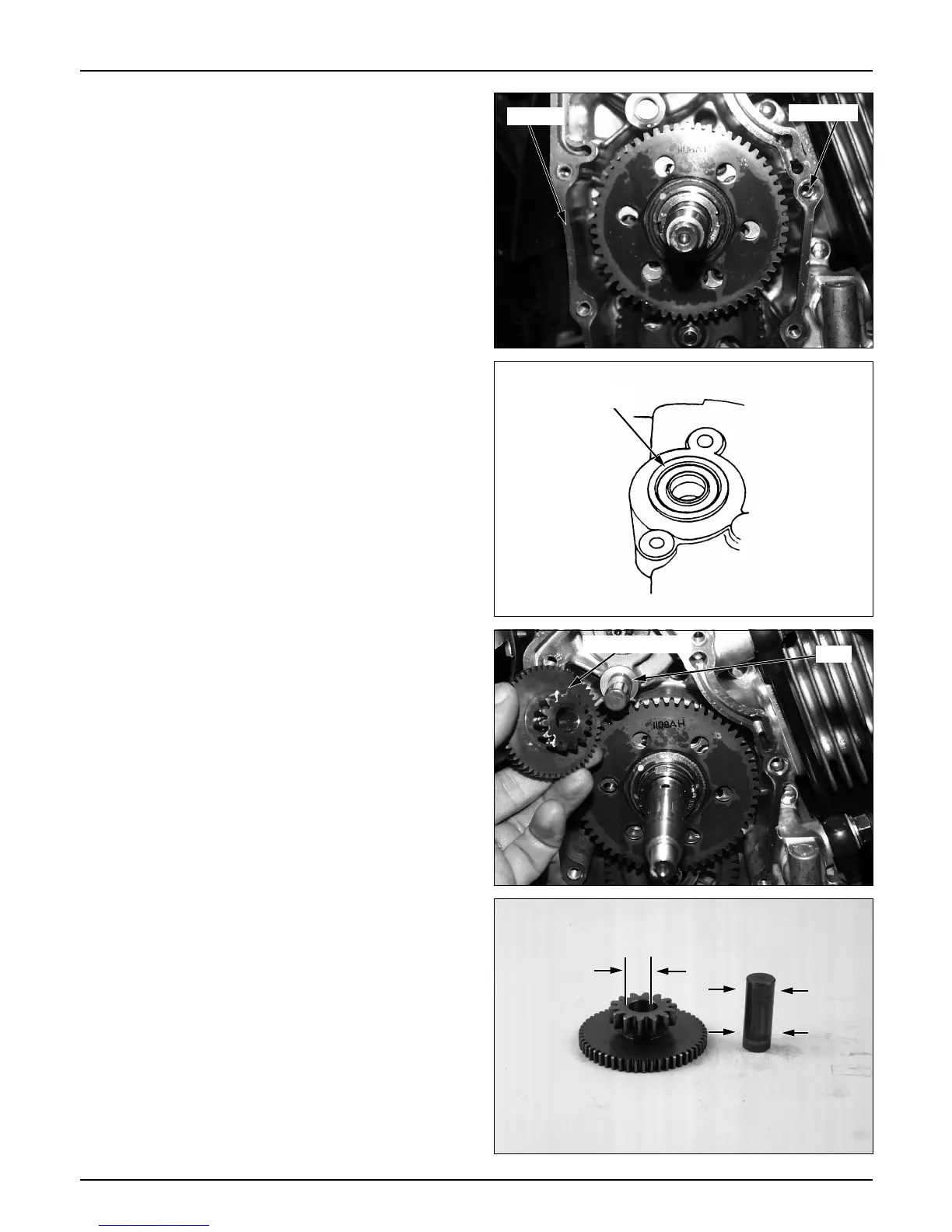

Generator/Starter Clutch
● Remove the gasket and dowel pin.
● Remove the oil seal
● Check the oil seal for wear or damage, and
replace with new oil seals, if necessary.
Starter Reduction Gear
● Remove the starter reduction gear and shaft.
Inspection
● Check the reduction gear for wear or damage.
● Measure the inner diameter of the gear.
Service limit:12.10mm(0.475in)
● Measure the outer diameter of the gear shaft.
Service limit:11.97mm(0.470in)
8-5
Gasket
Oil seal
Dowel pin
Reduction gear
Shaft
