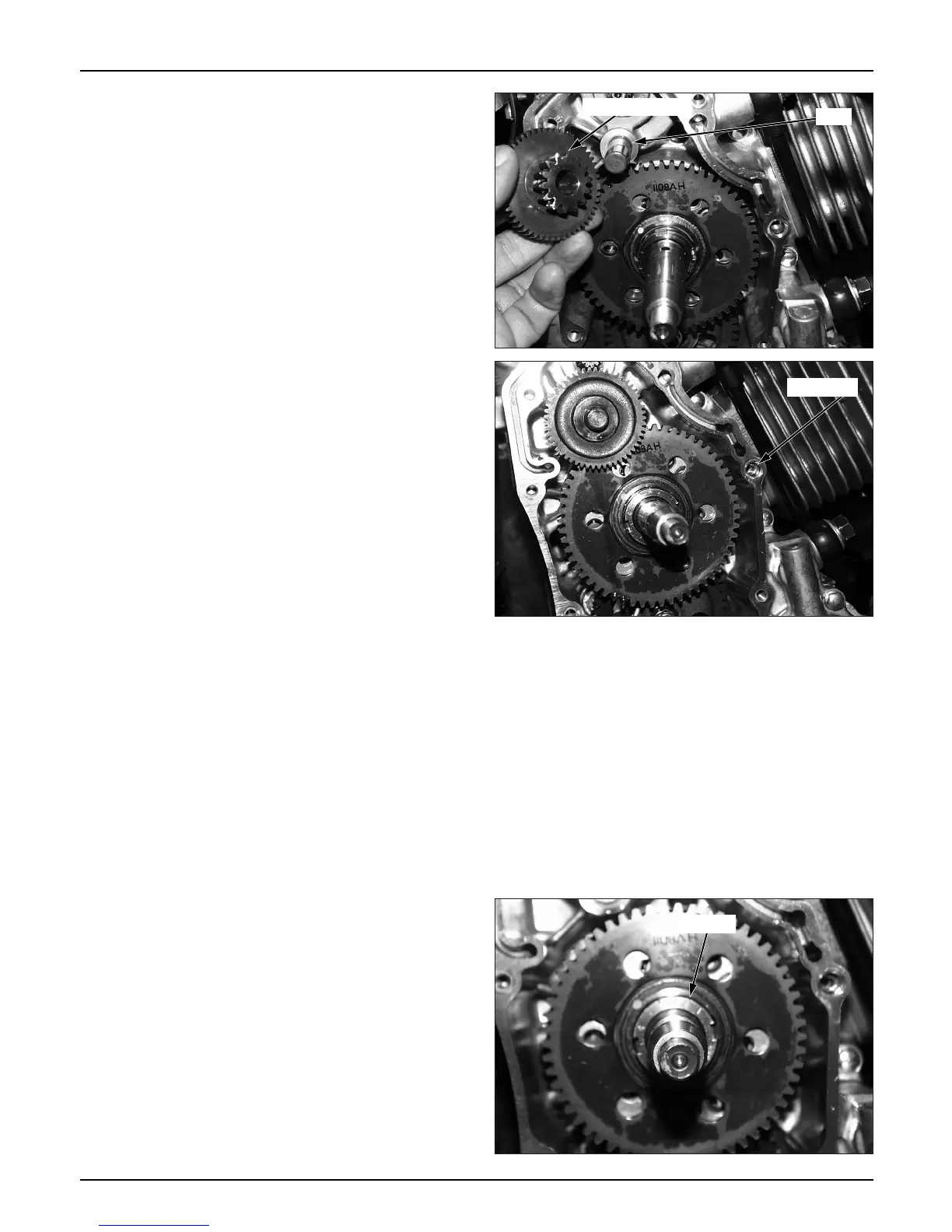

Generator/Starter Clutch
Assembly
● Assemble the starter reduction gear and shaft.
● Remove the gasket residues from the R. crank
case.
● Install the new gasket and dowel pin.
● Tighten the R. crank case cover with setting bolts.
● Assemble the A.C. generator. (⇨ 8-2)
● Assemble the R/L shroud. (⇨ 8-2)
- Assemble the luggage box (⇨ 4-5)
- Assemble the body cover (⇨ 4-6)
Starter Clutch
Removal
- Remove the shroud. (⇨ 8-2)
- Remove the A.C. generator. (⇨ 8-2)
- Remove the R. crank case cover (⇨ 8-4)
● Loosen the starter clutch lock nut with a special
tools.
Tool: Special socket (12.7
××
28
××
120)
Torque value:9.5kg-m(95N.m, 67ft-lb)
8-6
Dowel pin
Lock nut
Reduction gear
Shaft
To Next Page
