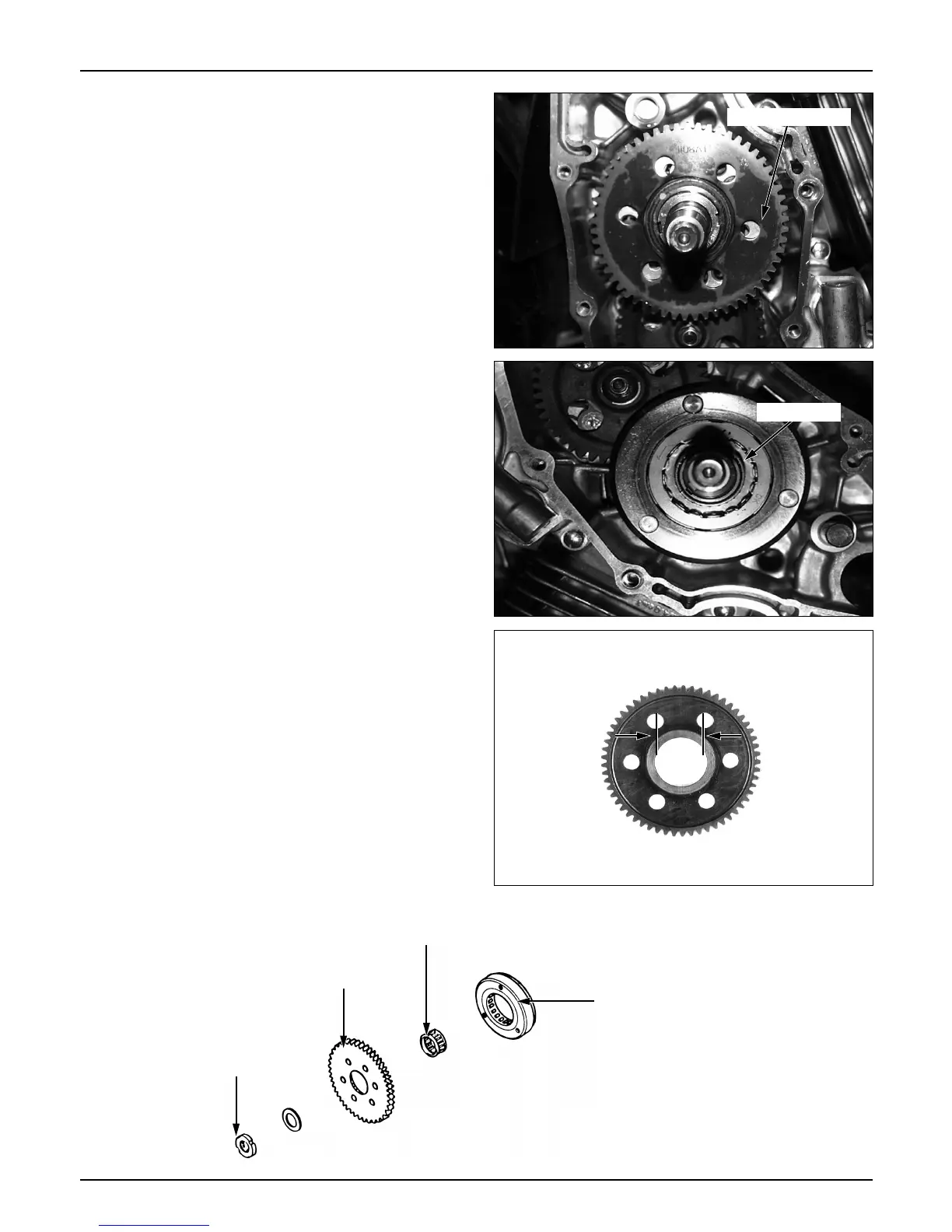

Driven gear
Lock nut
Needle bearing
Starter oneway clutch ass’y
Starter clutch
Generator/Starter Clutch
● Remove the washer.
● Remove the starter driven gear.
● Check the starter driven gear and starter clutch
for proper operation.
● Remove the starter clutch.
Inspection
● Check the starter driven gear for wear of damage.
● Measure the inner diameter of the starter driven
gear.
Service limit: A 32.10mm(1.262in)
B 39.53mm(1.556in)
8-7
Starter driven gear
