Daher TBM 940 - Normal Cruise (Recommended)

To Next Page

To Previous Page

Pilot's Operating Handbook

Section 5

Performance

Edition 0 - March 05, 2019

Rev. 0

Page 5.11.9

Normal cruise (Recommended)

7100 lbs

6300 lbs

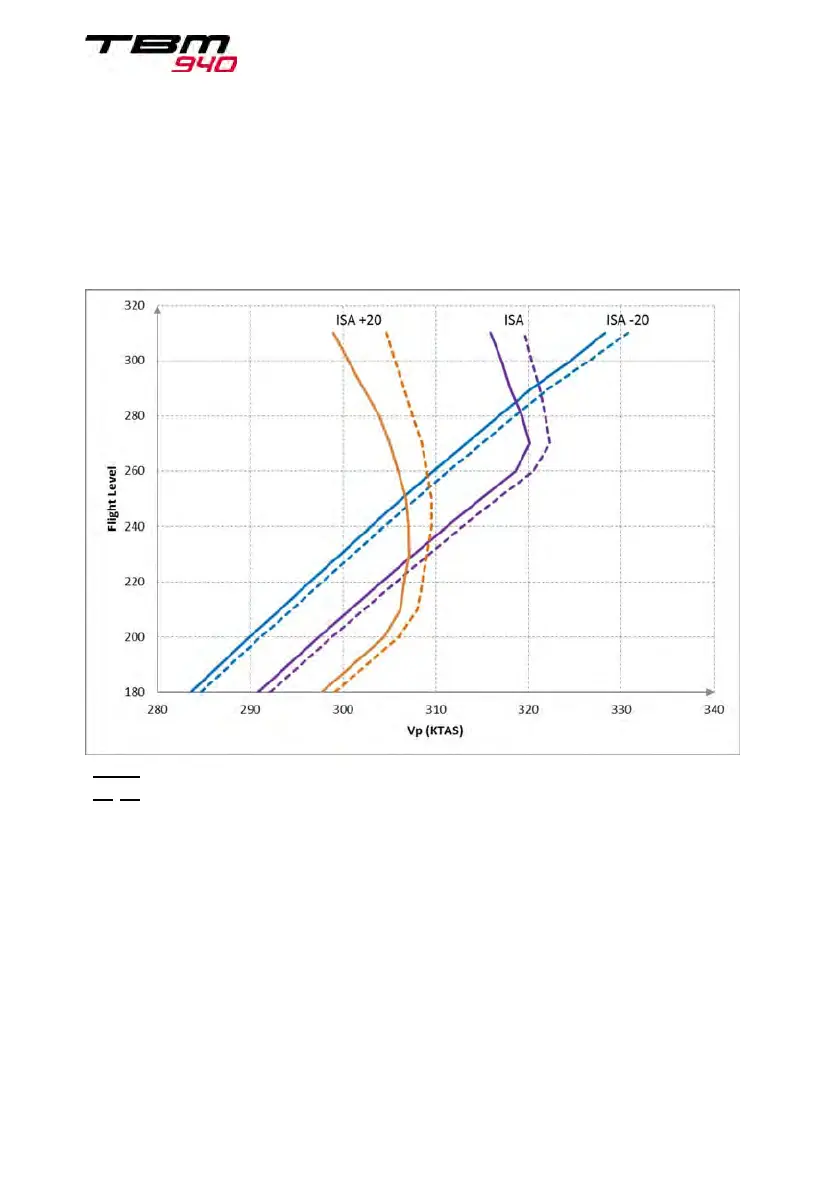

Figure 5.11.9 - Cruise performance (Recommended cruise)

PIM - DO NOT USE FOR FLIGHT OPERATIONS
