Daher TBM 940 - 2.5 Weight and C.G. Limits

Pilot's Operating Handbook
Section 2
Limitations
EASA Approved
Edition 0 - March 05, 2019
Rev. 0
Page 2.5.1
2.5 - Weight and C.G. limits
Weight l
imits
Maximum ramp weight (MRW) : 7430 lbs (3370 kg)
Maximum takeoff weight (MTOW) : 7394 lbs (3354 kg)
Maximum landing weight (MLW) : 7024 lbs (3186 kg)
Maximum zero fuel weight (MZFW) : 6032 lbs (2736 kg)
Maximum baggage weight :
- in FWD compartment (non pressurized) : 110 lbs (50 kg)
>> With 6-seat accommodation
- in rear part of pressurized cabin : 220 lbs (100 kg)
>> With 4-seat accommodation
- in rear part of pressurized cabin : 396 lbs (180 kg), with small or large net, see
sketch below

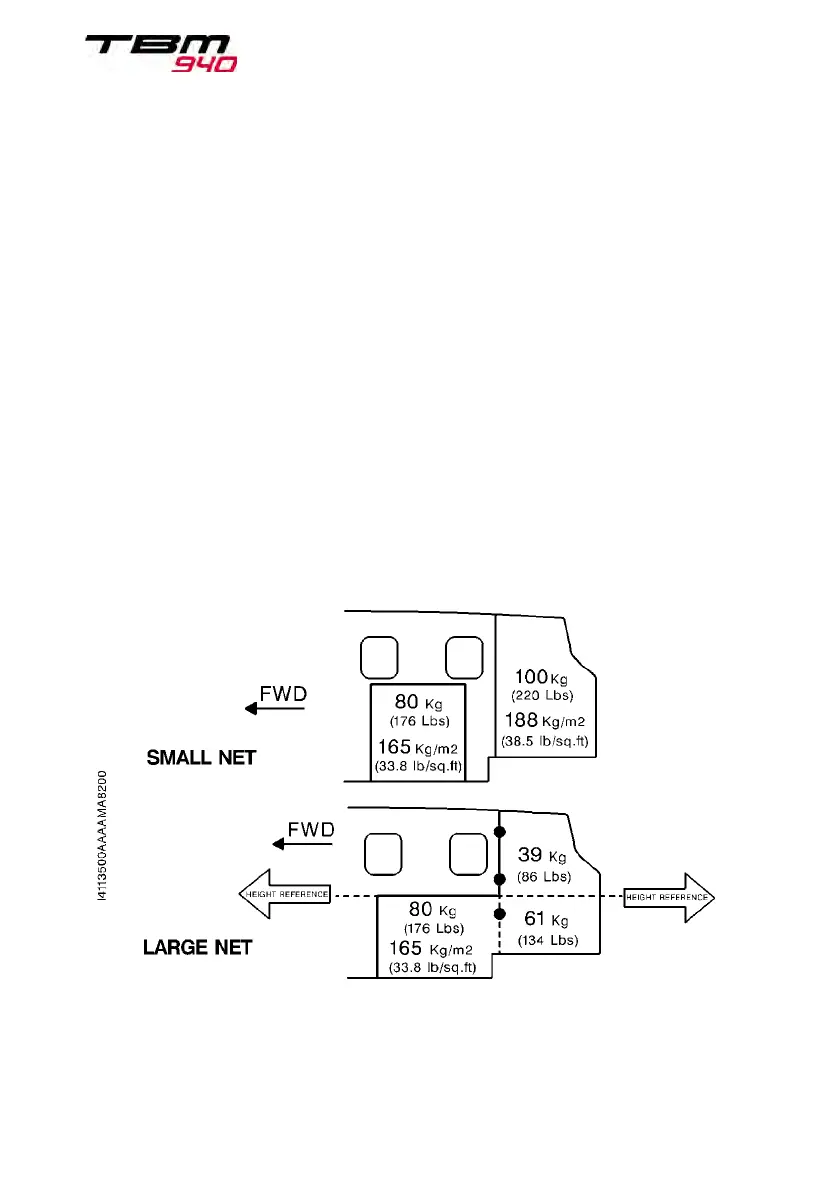

Figure 2.5.1 - Baggage limits
PIM - DO NOT USE FOR FLIGHT OPERATIONS
