Oxygen
The replenishment device of the oxygen cylinder is installed directly on the cylinder
head. I
t consists of a charging valve and of a pressure gage graduated
from 0 to 2000 PSIG. A chart - see figure 8.7.4, located on the inside of the cylinder
service door, gives the cylinder charge maximum pressure according to the
environment temperature.

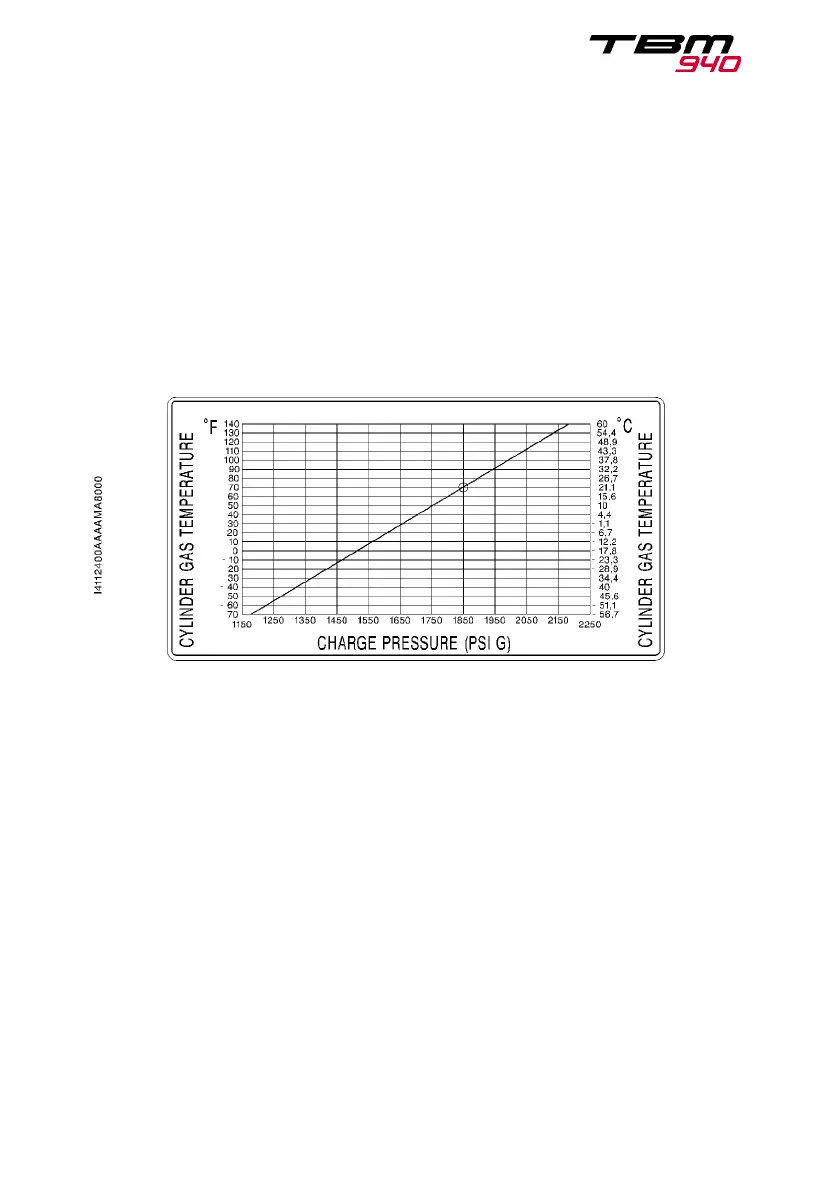

Figure 8.7.4 - Charge pressure chart
