Pilot's Operating Handbook

Section 7

Description

Edition 0 - March 05, 2019

Rev. 0

Page 7.2.2

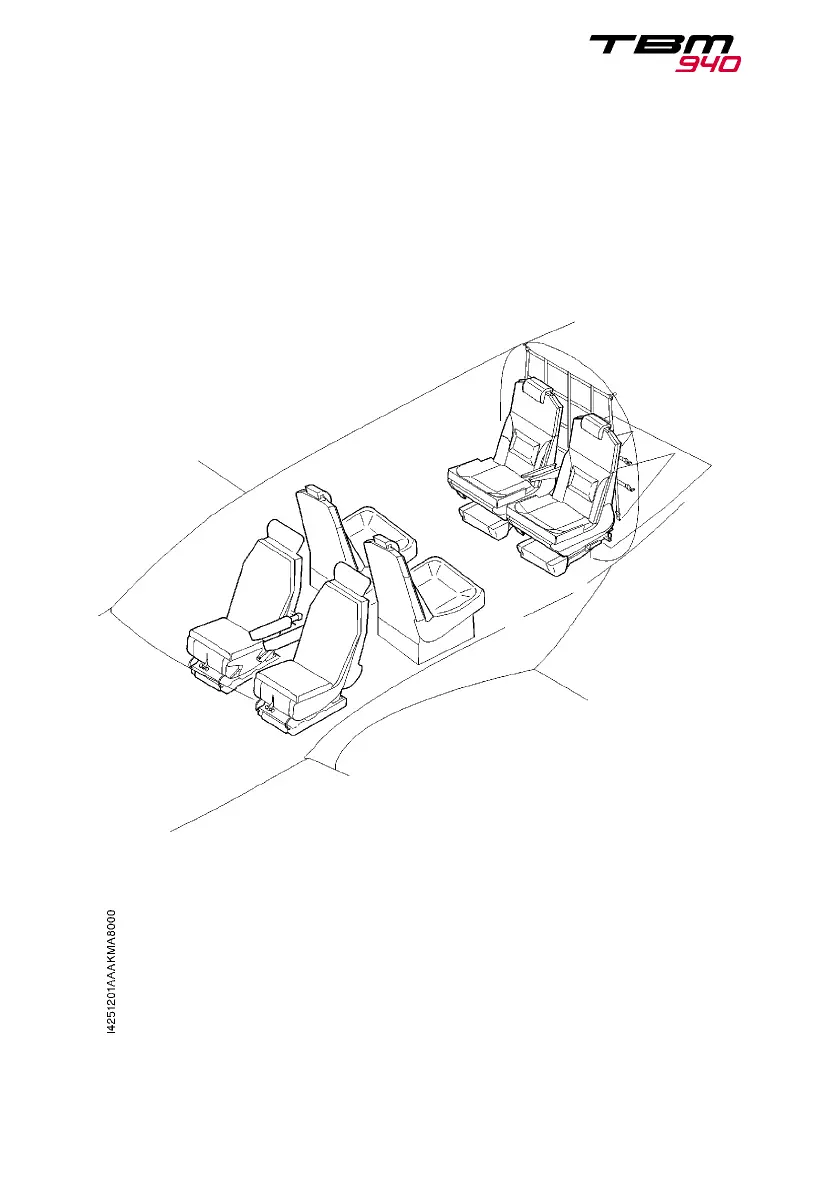

Figure 7.2.1 - Cabin arrangement

6-seat

accommodation
