Daher TBM 940 - Page 491

Pilot's Operating Handbook
Section 7
Description
Edition 0 - March 05, 2019
Rev. 0
Page 7.2.6

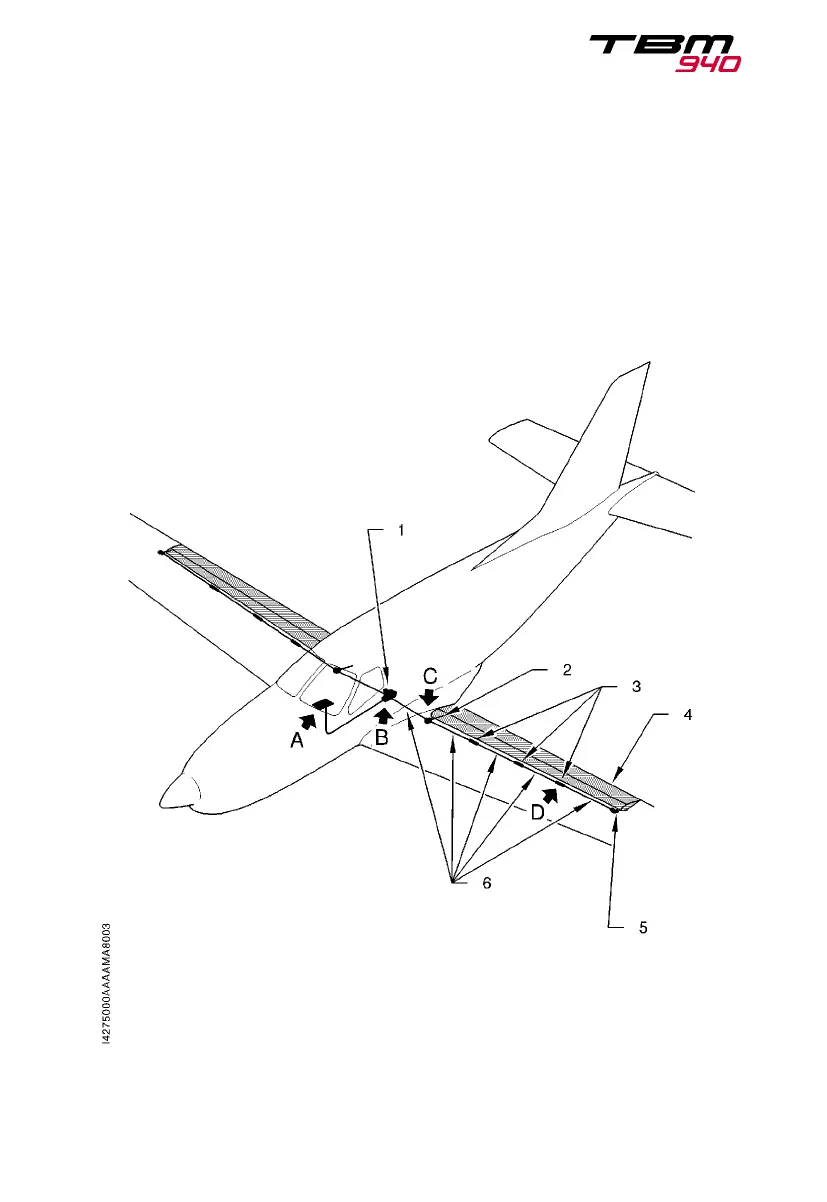

Figure 7.2.2 (1/2) - Wing flaps
1)
Geared
motor
2) Internal actuator
3) Intermediate bearings
4) Wing flap
5) External actuator
6) Rods
7) Control selector
PIM - DO NOT USE FOR FLIGHT OPERATIONS
