Daher TBM 940 - Page 560

To Next Page

To Previous Page

Pilot's Operating Handbook

Section 7

Description

Edition 0 - March 05, 2019

Rev. 0

Page 7.5.7

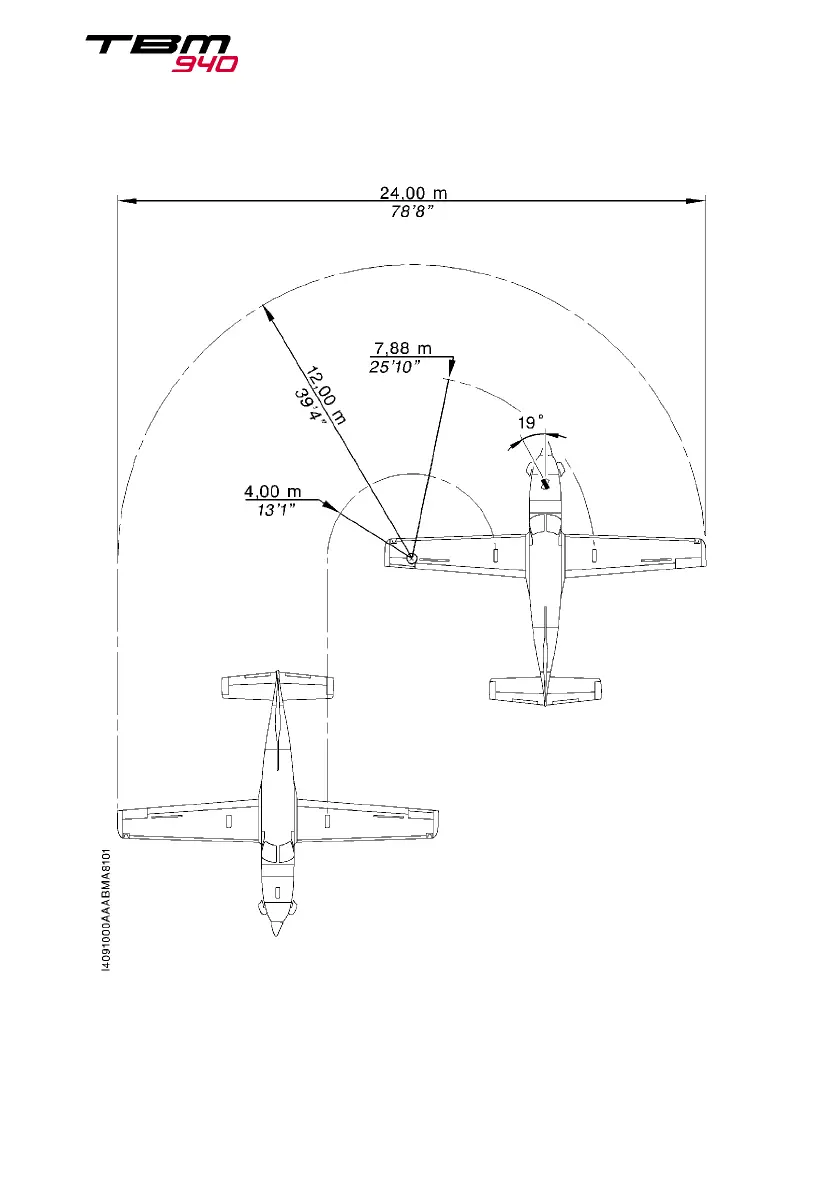

Figure 7.5.3 - Minimum turn diameter

(Full rudder pedals travel without using differential braking)

PIM - DO NOT USE FOR FLIGHT OPERATIONS
