Daher TBM 940 - Page 740

To Next Page

To Previous Page

Pilot's Operating Handbook

Section 8

Handling, servicing and maintenance

Edition 0 - March 05, 2019

Rev. 0

Page 8.9.11

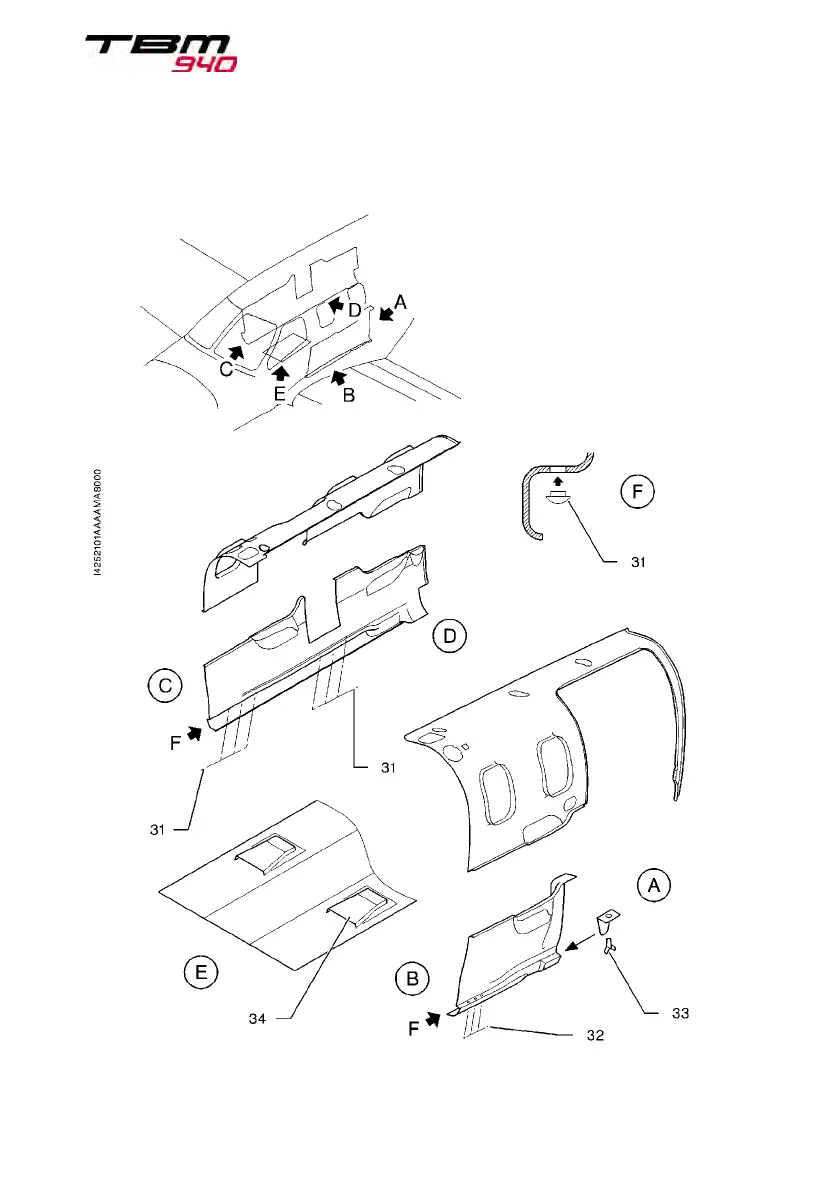

Figure 8.9.3 - Cabin comfort - Installation of blanking plugs and deflector

31)

Blanking

plug

32) Blanking plug

33) Blanking device assy

34) Deflector
