Pilot's Operating Handbook

Supplement 45

Mexico specifics

Edition 3 - December 20, 2018

Rev. 0

Page 9.45.11

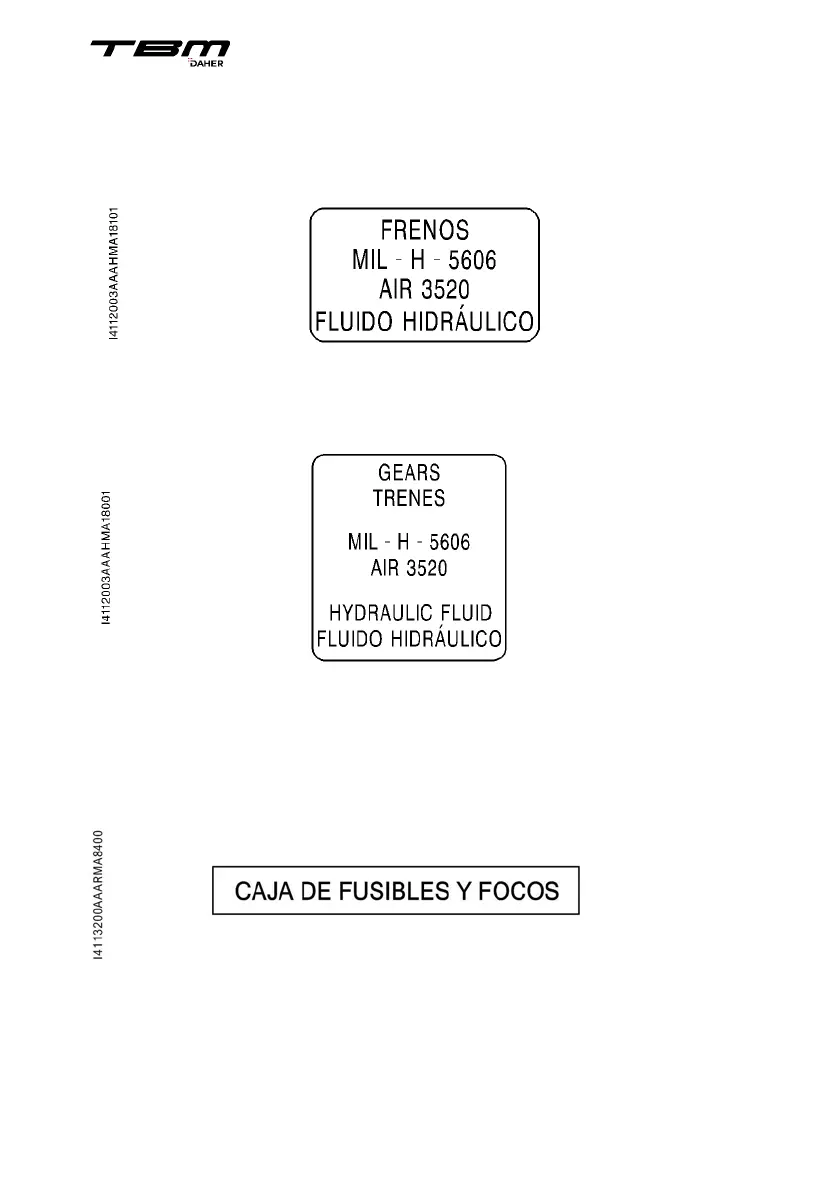

20 - Above brakes hydraulic fluid reservoir against firewall

21 - On langing gear hydraulic fluid reservoir

22 - On fuse box in engine cowling

PIM - DO NOT USE FOR FLIGHT OPERATIONS
