Daher TBM 940 - Page 861

To Next Page

To Previous Page

Pilot's Operating Handbook

Supplement 72

France specifics

Edition 0 - December 04, 2019

Rev. 1

Page 9.72.4

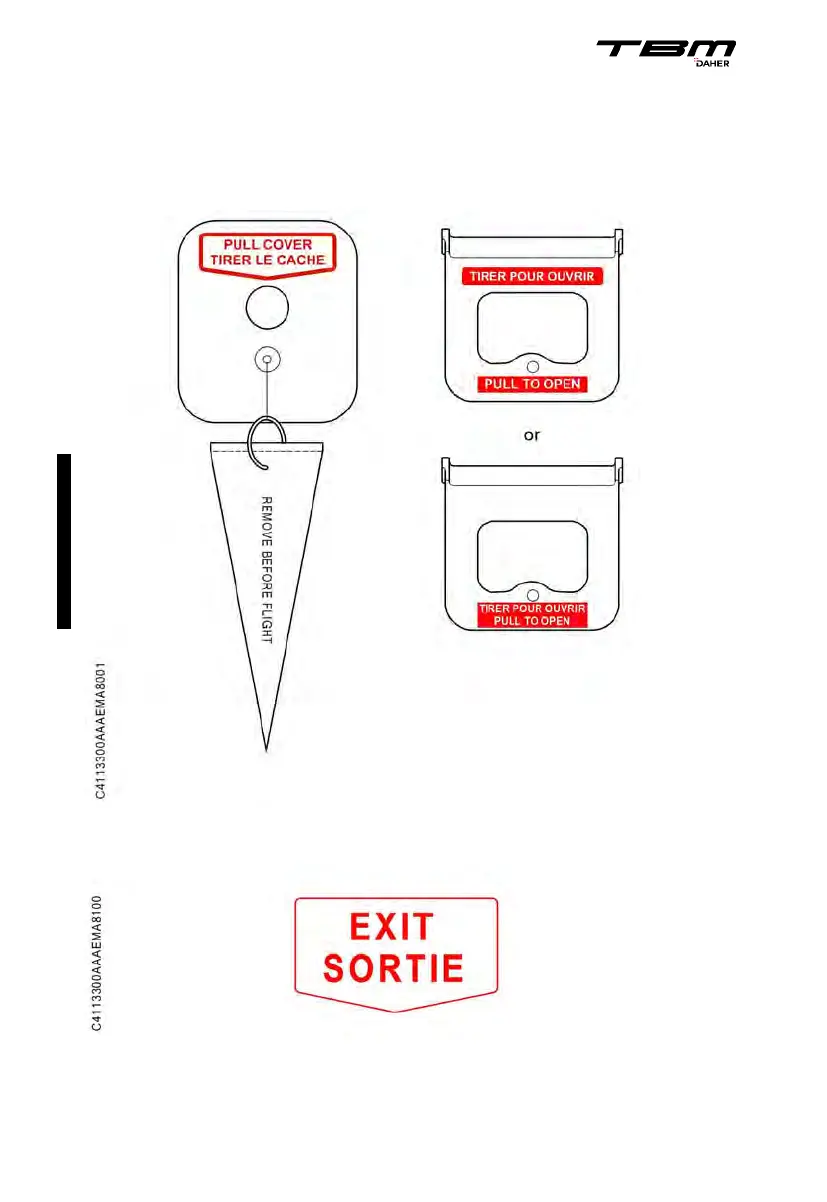

4 - On emergency exit handle

Marking

cover

Marking

handle

5 - Above emergency exit door

PIM - DO NOT USE FOR FLIGHT OPERATIONS
