Pilot's Operating Handbook
Supplement 73
Extended large storage cabinet
Edition 0 - February 14, 2020
Rev. 0
Page 9.73.11
The cabinet is composed of two large drawers and a small drawer completing the
stor
age volume of a large drawer.
One large drawer opens sideways into the aisle. A small drawer is installed inside this
large storage volume.
One large drawer opens rearward in front of the large door.

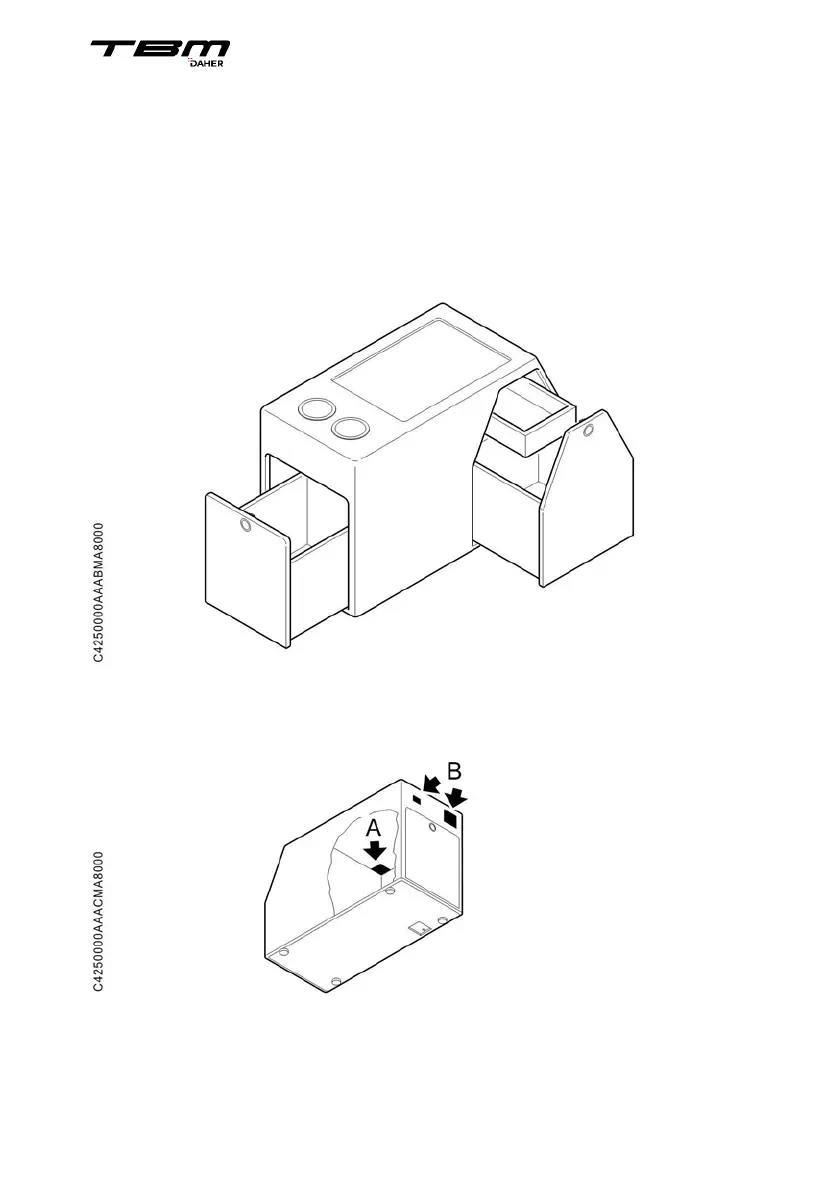

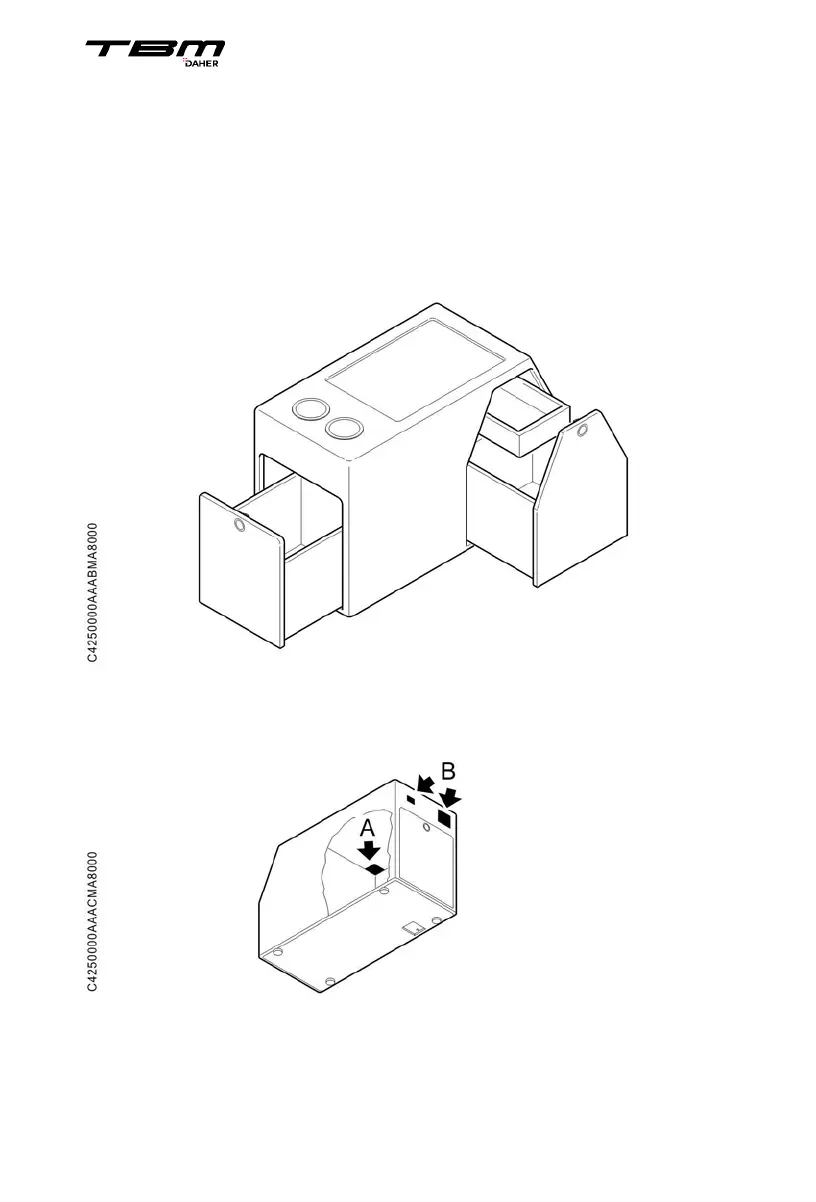

Figure 9.73.4 - Storage cabinet
>> Cabinet equipped with electrical supply
Figure 9.73.5 - Storage cabinet - Electrical supply
The cabinet provides USB and 115V (max power : 250 W) connections (refer to B).
