2.4 Installation

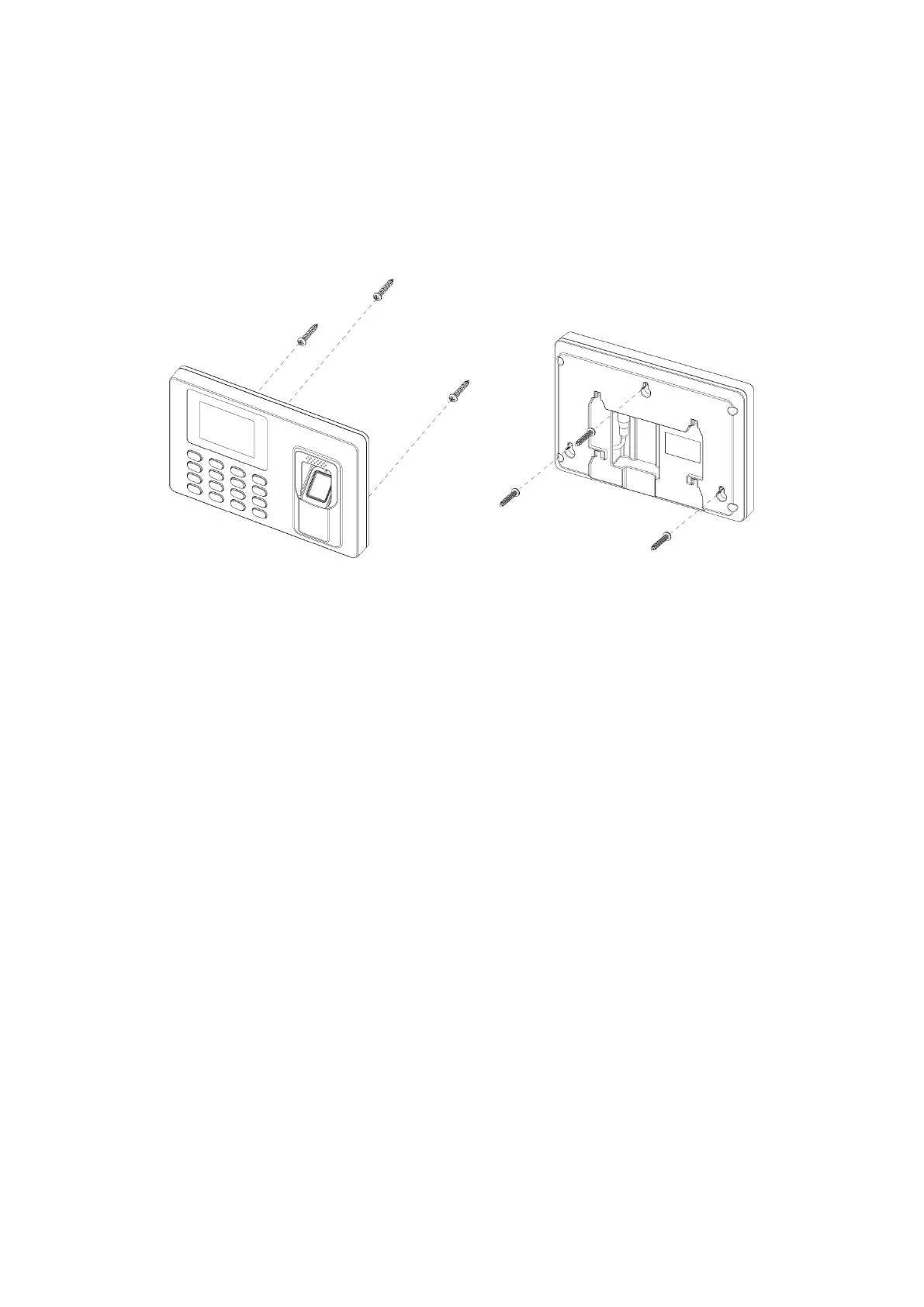

Time attendance installation is shown in Figure 2-4.
Figure 2-4
Installation steps:
Step 1. Stick installation map on the surface you are going to install, and dig hole in
accordance with hole position on the map. Insert expansion bolt into installation hole.
Step 2. Fix screw on wall in accordance with the map, leave a space of 2mm~2.5mm
between screw and wall.
Step 3. Plug in power plug, put wire in order to their corresponding areas.
Step 4. Hang the device on the screw.
